UWPMM1UL2X
Alt: Universal Web Platform
$454.40
Wireless Master Gateway North America
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Features Include:
- LoRa®/LoRaWAN® communication for a RS485 Carlo Gavazzi meter and analyser (UWPA)
- Plug’n play commissioning of a long-range wireless monitoring system based on UWP 3.0 (UWPA+UWPM)
- Integration of pulse output meters (electricity, gas and water) in combination with VMU-MC/OC.
- Wireless solution with no SIM card (ISM band)
- Data concentrator for up to 50 UWPA endpoints
- Long communication range (up to 10 km in open air)
- Robust and secure communication
- Compatible with Carlo Gavazzi UWP 3.0 platform
- High-performance antenna
- Power Supply: 24 V dc +/-20%, 115-240 V ac 50/60 Hz +/-10%
- Power Consumption: DC: 1.3 W max., AC: 5.5 VA max.
- Protection degree Front: IP50
- Terminals: IP20
- Terminals Cable Section: 1.5 mm2
- Torque: from 0.4 to 0.8 Nm
- Mounting: DIN rail

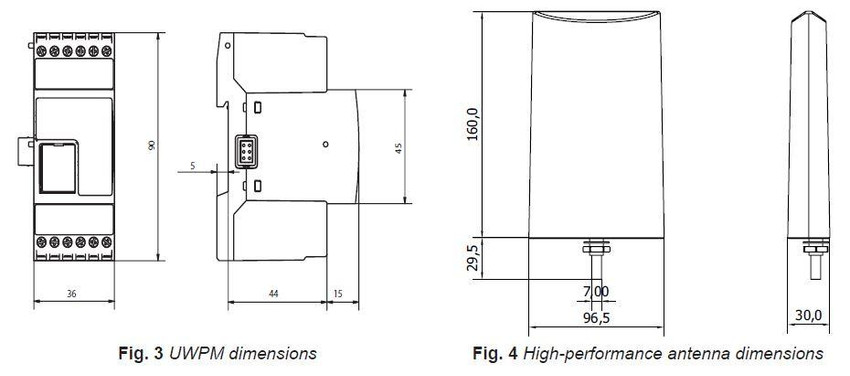

- Dimensions 2-DIN module
- Antenna: cable length 2 m
