Base for USB Powered LED Signal Tower, PC Controlled, Off-White Body, 5VDC, IP65, 4X/13, LED's Sold Separate, 60mm, Modular Design, Easy Attachment of LED Tiers
Our Patlite LR series is available in four diameters; 40, 50, 60 or 70mm.
LR4 Series - 40mm, 24VDC or 100-240vAC
LR5 Series - 50mm, 12VDC or 24VDC
Also available with manual control switch box (HSST-3M2)
LR6 Series - 60mm, 24VDC or 100-240VAC
Multi-color LED module available, 7 colors in one (LR6-E-MZ)
Available with M12 connector, 1/2" NPT or 30mm through-hole mounting option
LR7 Series - 70mm, 24VDC only
All LR light towers offer:
Ultra-bright LEDs - brilliant, even light
IP65 (IEC 60529), NEMA 4X, 13, indoor use
Modular twist and lock design, easily customize and field configure LED units and sound modules
Completely enclosed optional sound module maintains substantial water and dust protection, 360° sound!
Sleek, smooth and rugged housing

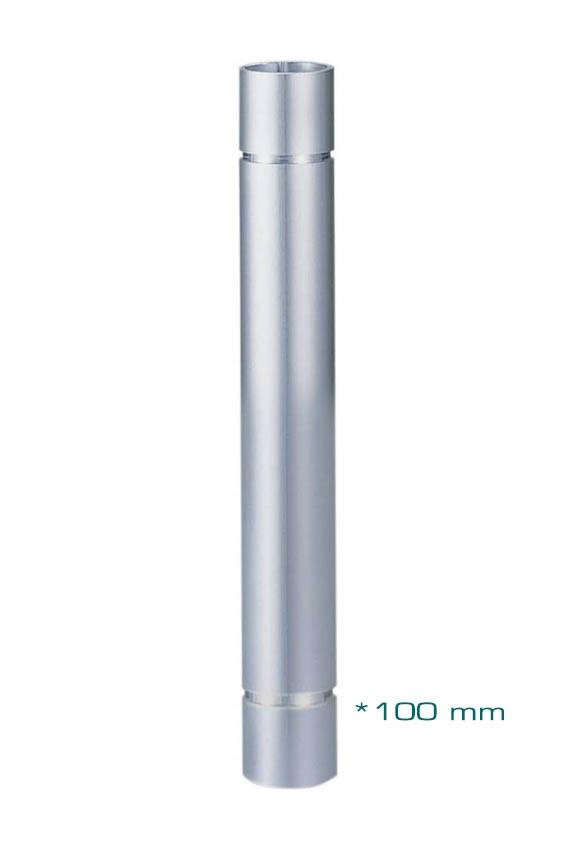

Four mounting options - direct, pole with L-bracket, pole with circular bracket, pole with folding pracket (off-white only)
Available in off-white or silver bodies
NPN/PNP transistor output (AC100-240V is NPN only)
Operating ambient temperature -20°C to 50°C
2 year warranty
The LR series replaced LCE-A, LCS-A, LE, LES, LU5, LME, LMS, LME and LU7 series
Patlite introduces their WD Wireless Data Series!
Modernize your workplace with Patlite's WD wireless data acquisition system - receive real time sttatus alerts straight from the factory floor to any computer!
The system consists of a Patlte light tower + transmitter (see below) which will send information to the receiver (WDR-LE-Z2-PRO):
For the LR4 series - use wireless data transmitter WDT-4LR-Z2, will also need receiver WDR-LE-Z2-PRO
For the LR5 series - use wireless data transmitter WDT-5LR-Z1, will also need receiver WDR-LE-Z2-PRO
Two options for the LR6 series:
use WDT-6LR-Z1, will also need receiver WDR-LE-Z2-PRO
or use WDT-6LR-Z1-PRO - will also need receiver WDR-LE-Z2-PRO and WDB-D80S-PRO base
Features Include:
Operating Voltages: 5V DC ±5% (USB Bus Powered, Rated voltage is compliant with USB 2.0 Standard)
Rated Current Consumption: 500mA (max)
Ambient Operating Temperature: -20°C to +50°C
Ambient Operating Humidity: 90% RH or less, no condensation
LED Unit Control: Light on, pattern on (4 types)
Functions: LED units and Buzzer is controlled by a PC via USB interface
Controlled by PC
Custom programming made easy with our free software library (DLL)
Open architecture makes it possible to control the device with other operating systems such as Linux
Supports HID class. No exclusive drivers necessary
Supports solid color, clear-globe, and 7-in-1 multi-color LED units
High water and dust protection
Buzzer:
Operation: Sound on, sound pattern (4 types)
Frequency: 13 types
Sound Pressure: Typ.80dB (1m from the front of the buzzer aperture / at 2349.3 Hz), Sound reduction (Buzzer switch: Low): approximately -10dB
Protocols:
USB 2.0
Software Library (DLL) compatible with Windows® 7, Windows® 8, Windows® 8.1 (excluding Windows® 8RT and 8.1RT) and Windows® 10
Compatible with open-source software operating systems such as Linux
Protection Ratings:
IP65 (IEC 60529), except when pole or wall mounted.
