Available Now! 8120200120

Product image is representative only, please verify specifications.

Available Now! (1 in stock)

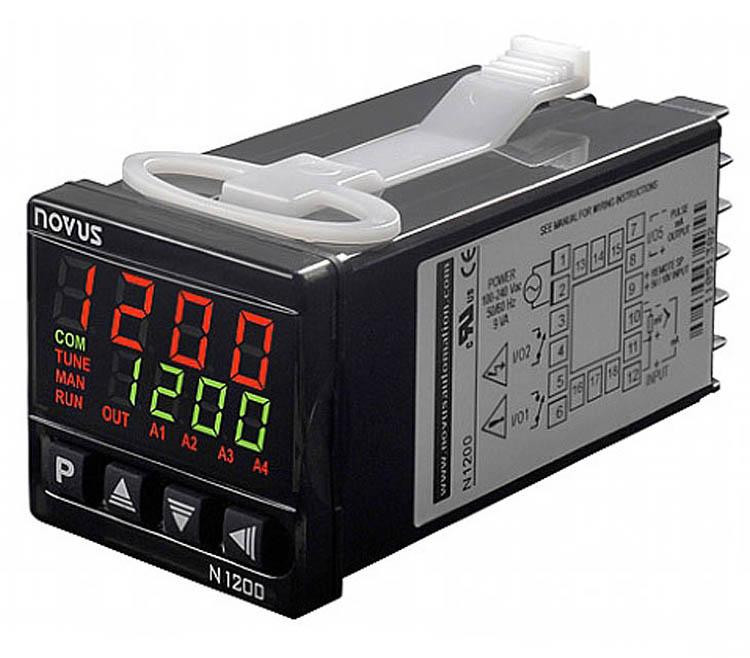

Novus

8120200120

Alt: N1200 USB

$193.00

USB Process Controller, 2 Relays, 48x48mm, Self Adaptive PID Process Controller

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Our NOVUS 1200 is a process controller that was designed for high performance and demanding application.

This series had the highest sampling rate among competitors; 55 samples per second. Thanks a its self-adaptive PID algorithm, the N1200 responds quickly and accurately even in the most complex temperature profiles.

The N1200 is an easy-to use model and is fully configurable by keyboard or USB using the NOVUs free configuration software.

This series allows ramp and soak temperature profiles customization, programming up to 20 user-configured recipes or up to 180 segments.

The N1200 accepts most industrial sensors and signals and the housing is made of flame retardant material.

Features Include:

  • Accepts thermocouples J, K, N, R, T, S, B, E,  Pt100 RTD, 0-20 mA, 4-20 mA, 50 mV, 0-5 Vdc and 0-10 Vdc
  • Internal resolution: 32,767 levels (15 bits)
  • Displayed resolution: 12,000 levels
  • Dual LED display: red upper display for PV, 10 mm high; green lower display for SV,  8 mm high
  • Sampling: up to 55 measurements/second
  • Control output update: up to 20 ms
  • Isolated 4-20 mA output with up to 32,000 resolution levels (15 bits), 550 ohms maximum load
  • 2 SPST relays 1,5 A / 240 Vac/dc and 1 SPDT relay (optional)
  • 3 A/250 V AC/DC
  • Power supply: 100 to 240 V AC/DC, 50/60 Hz
  • Maximum consumption: 9 VA
  • Operating environment: 5 to 50 °C, 30 to 80% RH
  • Dimensions: 48 x 48 x 110 mm, 1/16 DIN
  • Panel cutout: 45.5 x  45.5 mm (1.79 x 1.79 in
  • Approximate weight: 150 g (5.29 oz.)

Protection:

  • NEMA 4 front bezel (IP65), PC UL94 V-2
  • Case IP20, ABS + PC UL94 V-0
  • Rated CE and UL.
