Available Now!
Available Now!
(5 in stock)
8104220114

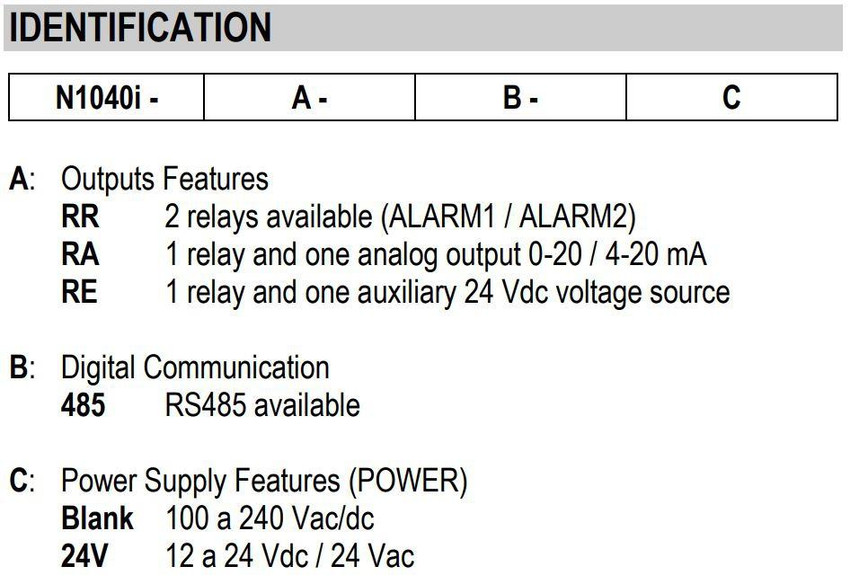

Alt: N1040i-RR USB 24V
$107.00
Universal Indicator, 2 Relays Out, 48x48mm, Indicators
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

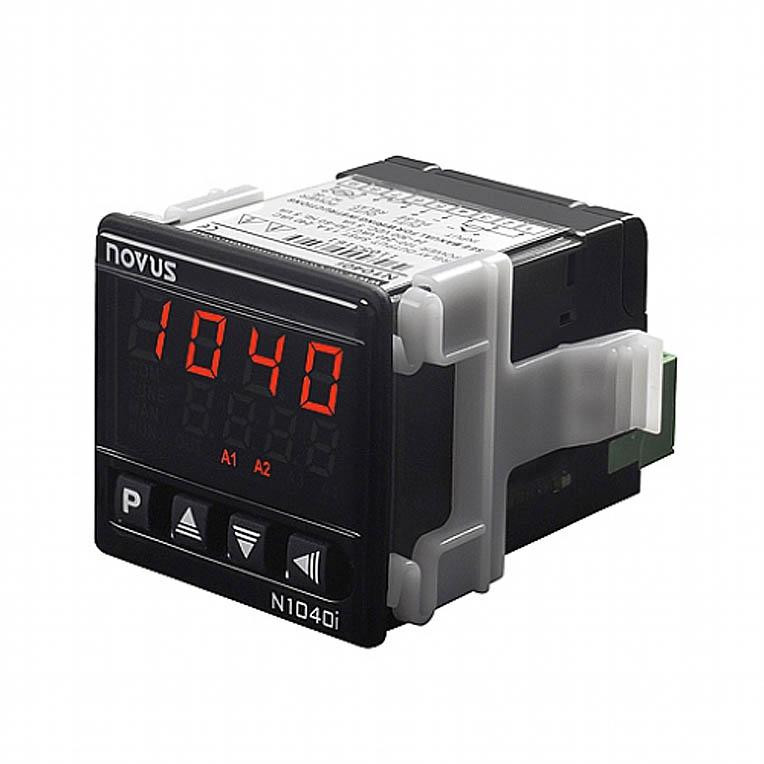

Universal indicator, 2 Relays Out, 48x48 mm Indicators
Features Include:
- Thermocouple inputs J, K, T, N, R, S, B, E, RTD Pt100 and linear 0-20 mA, 4-20 mA, 0-50 mV, 0-5 V e 0-10 V in one model
- Input adjustable Offset allows small indication corrections
- Analog input signal retransmission over 0-20 mA or 4-20 mA
- Up to 2 programmable alarms outputs
- Up to 2 relay outputs, SPDT and SPST-NO
- Alarm Functions: minimum, maximum, differential, minimum differential, maximum differential and sensor break
- Features Initial alarm blocking function
- Flash alarm function alerts operator to condition while in alarm state
- Sensor failure detection
- Password parameters protection
- Factory calibration parameters recovery
- Universal switching power supply ensures high precision even under mains voltage oscillations
- Optional auxiliary 24 Vdc power supply to connect field transmitters
- Optional RS485 interface
- Power Supply: - 100 to 240 Vac (±10 %), 50/60 Hz - 48 to 240 Vdc (±10 %)
- Dimensions: 48 x 48 x 80 mm
- Internal Resolution: 32767 levels (15 bits)
- Display Resolution: 12000 levels (de -1999 to 9999)
- Input reading rate: up 55 per second
- Precision: - Thermocouples J, K, T, E: 0.25 % of the span +1ºC - Thermocouples N, R, S, B: 0.25 % of the span +3ºC - Pt100: 0.2 % of the span - 4-20 mA, 0-50 mV, 0-5 V, 0-10 V: 0.2 % of the span
- Certifications: CE, UL
