8150000100

8150000100

Alt: N1500

$195.00

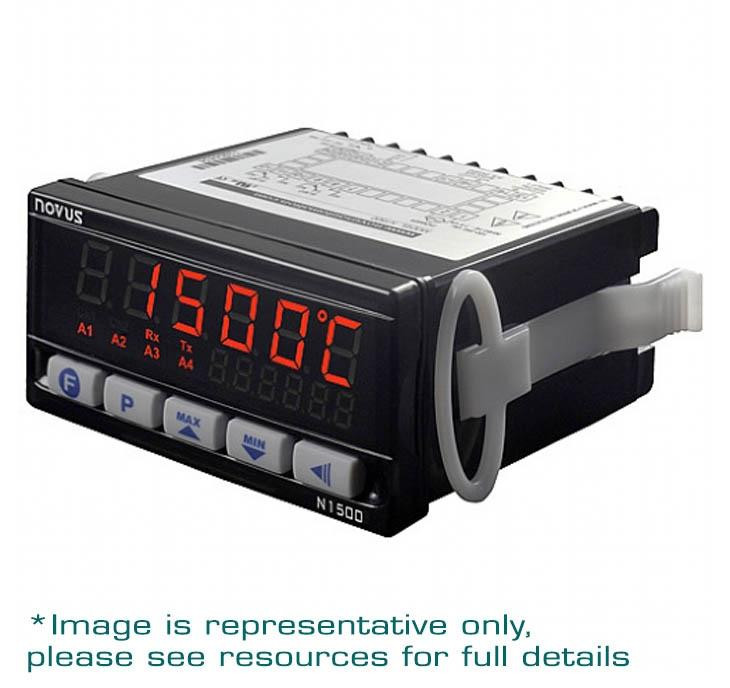

Universal Indicator, 2 Relays + 4-20mA, 96x48mm, Indicators

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Universal Indicator, 2 Relays+4-20 mA, 96x48 mm Indicators

Features Include:

  • Accepts: type J, K, T, E, N, R, S and B thermocouples; Pt100, 4-20 mA, 0-50 mV and 0-10 Vdc
  • Programmable scaling from -1999 to +9999 and adjustable digital filter
  • Accepts and linearizes non-linear 4-20 mA signals from thermocouple transmitters
  • Accepts front panel input of custom created non-linear curve with up to 20 segments
  • Selectable decimal point for Pt100 , 4-20 mA and 0-50 mV
  • Key panel protection through password to avoid tampering
  • Alarms: Two 3 A SPST relay alarms in the basic version and two extra relays optional
  • Alarm functions: HI, LO, differential HI, diff. LO and sensor break detection
  • Hold capability and peak and valley detection
  • Tare function via front panel or via digital input
  • Five digit 13 mm ultra-bright LED display
  • Standard 24 Vdc output for field transmitters
  • Universal switching power supply
  • Circuitry can be removed from housing without disconnecting wires
  • Front panel: IP65, Polycarbonate UL94 V-2
  • Back panel: IP30, ABS + PC UL94 V-0
