Weg
UMBW-4C1-10

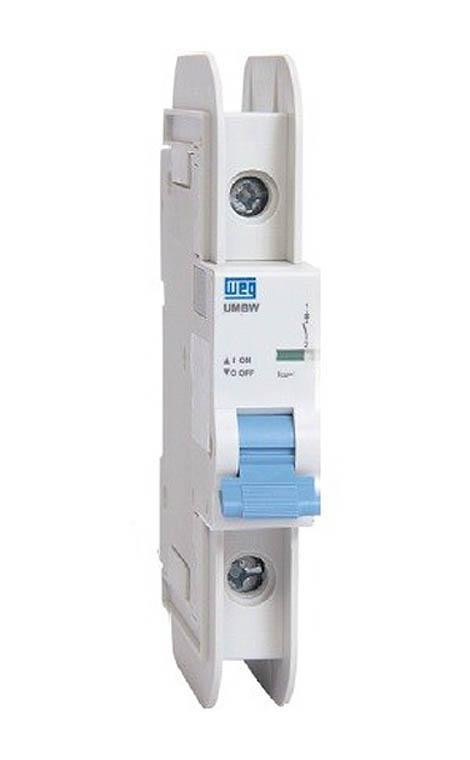

MCB, UL489, 1-Pole, C-Curve, 10 Amp, 277VAC/60VDC, 10kA, Thermal-Magnetic Miniature Circuit Breaker, IP20, UMBW Series
$19.61
UMBW-4C1-50
Alt: 14361949, Replaces UMBW-4B1-50 (14360409)
$19.61
MCB, UL489, 1-Pole, C-Curve, 50 Amp (50A), 120VAC/60VDC, 10kA, Thermal-Magnetic Miniature Circuit Breaker, IP20, UMBW Series
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
UMBW Series Features Include:
- AC & DC voltages available in one series
- UL489 Branch Circuit protective device
- UL1077 Equipment protection
- 17.5mm width per pole
- Visual status indication
- Positive trip-free snap action mechanism to ensure reliable switching
- Cuttable Bus Bar connecting system
- Ambient Temperature Rating: -35°C to +70°C
Technical Information:
Learn more about Circuit Breakers Here!
