235852
Alt: UDC-18GM-400-3E2
$992.14

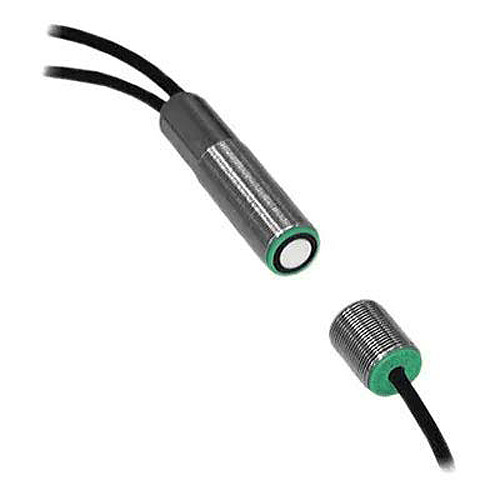

Ultrasonic Sensor, Double Sheet Detector, 3 PNPxNO18-30VDC, IP67, 2m Cable, Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Specifications
Alternate Part Number
UDC-18GM-400-3E2
Output
See Spec
Size
See Spec
Warranty
18 Months
Weight
1
Features Include:
- Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably papers
- No TEACH-IN required
- Function indicators visible from all directions
- Insensitive to printing, colors, and shining surfaces
- Material weight from 10 g/m2 up to over 2000 g/m2
- Very wide material spectrum, finest papers up to thin sheet metals as well as plastic- and metal foils
- Perpendicular or inclined sensor mounting relative to the sheet plane possible
- Programmable
