50142875
Alt: GSU14E/LGT.3-M12, This is the Suggested Replacement for # 50126781, Non-Cancellable/No Returns, Non-Cancellable / No Returns
$748.00
Ultrasonic Fork Sensor, Teach Input, 18-30VDC, Transistor, Push-Pull, NPN Light Switching/PNP Dark Switching, Silver Metal Housing, M12, Male, 5-Pin Connector, IP65, NCNR
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Description
Leuze actually began as a textile mill in Southern Germany in 1861. In 1963 the decision was made to found Leuze Electronic and develop sensors for the company's textile machines. At the time they had no idea that they would develop into the successful international company they are today!
Leuze has an extensive range of sensors including measuring, safety, identifications and switching.
Their U.S. Headquarters is located in Duluth, Georgia.
Specifications
Alternate Part Number
GSU14E/LGT.3-M12, This is the Suggested Replacement for # 50126781, Non-Cancellable/No Returns, Non-Cancellable / No Returns
Output
See Spec
Size
Rectangular
Warranty
2 Years
Weight
1
Length/Depth
96mm
Height
46.9mm
Width
22mm
Features Include:
- Series: 14
- Principle of physics: Ultrasonics
- Application: Detection of transparent labels, Detection of non-transparent labels
- Label width, min.: 4 mm
- Label gap, min.: 2 mm
- Medium: Transparent and not transparent
- Supply voltage UB: 18 - 30 V, DC
- Function: Voltage supply, Signal IN, Signal OUT
- Type of connection: Connector
- Thread size: M12
- Type: Male
- Material: Metal
- No. of pins: 5 -pin
- Mouth width: 4 mm
- Mouth depth: 80 mm

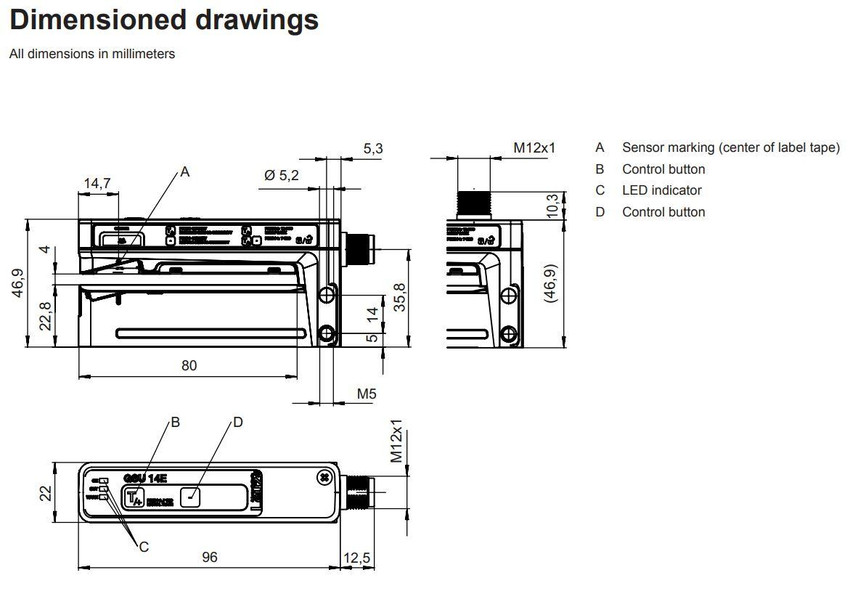

- Dimension (W x H x L): 22 mm x 46.9 mm x 96 mm
- Housing material: Metal
- Metal housing: Diecast zinc, galvanic nickel coating
