50124260
Alt: DMU418B-400.X3/LTC-M12, Non-Cancellable / No Returns
$768.00

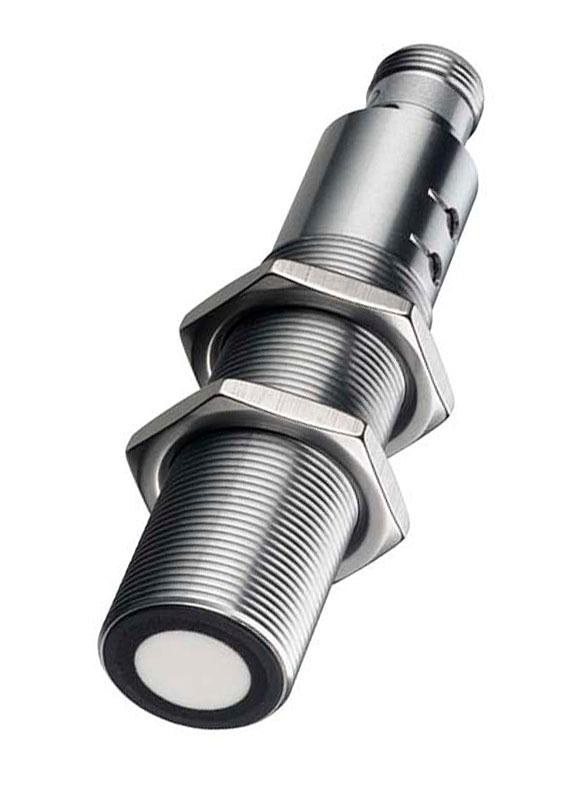

Ultrasonic Distance Sensor, Transistor, Push-Pull, 15-30VDC, 25-400mm Range, 1NC/1NO, M12, 5-Pin, NCNR
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Leuze actually began as a textile mill in Southern Germany in 1861. In 1963 the decision was made to found Leuze Electronic and develop sensors for the company's textile machines. At the time they had no idea that they would develop into the successful international company they are today!
Leuze has an extensive range of sensors including measuring, safety, identifications and switching.
Their U.S. Headquarters is located in Duluth, Georgia.
Features Include:
- Supply Voltage: 15-30 VDC
- Open-Circuit Current: 30-50 mA
- Switching Element: Transistor, Push-Pull
- Contains: 2x M18 mounting nut
- Function: Activation input, Freely configurable, Teach input
- Opening Angle: 9°
- Direction of Beam: Front
- Measurement Range: 25 - 400 mm
- Resolution: 0.1 - 0.5 mm
- Accuracy: -0.5 - 0.5%
- Dimension (Ø x L): 18 mm x 90 mm
- Housing Material: Metal, Nickel-plated brass
