UA30CAD35PPM1TI
Alt: Minimum Order 5 Pieces, Price per Piece, Replaced UA30CLD20POM1TI
$517.60

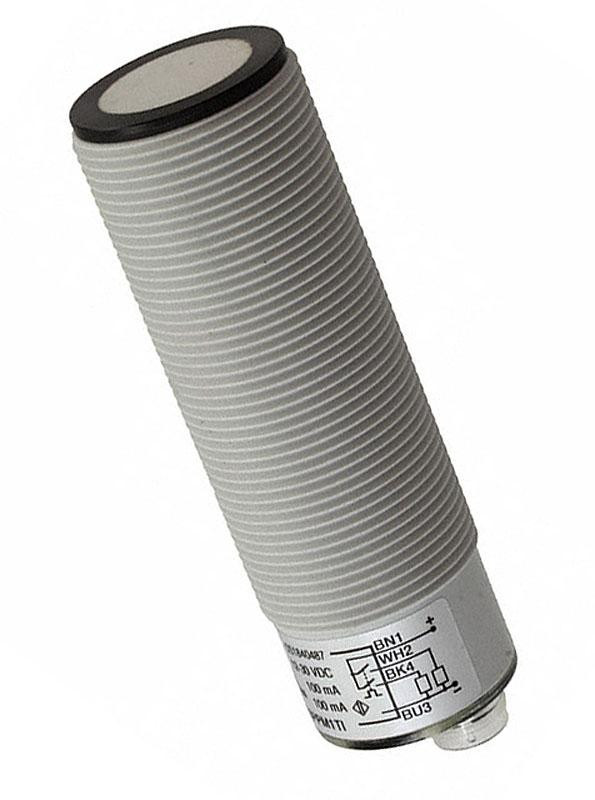

Ultrasonic Diffuse Sensor, Ø30mm, ±6° Beam Angle, 12-30VDC, 250-3500mm Range, 2xPNP, M12 Plug, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 5 units
Description
Ultrasonic Diffuse Sensor, Ø30mm, ±6° Beam Angle, 12-30VDC, 250-3500mm Range, 2xPNP, M12 Plug, IP67
Features Includes:
- Cylindrical M30 PBT housing
- Sensing distance: 250-3500 mm
- Power supply: 12 to 30 VDC
- Outputs: Two multi-function switching outputs. 2 x PNP
- Setup: Normal switching or adjustable hysteresis
- Repeatability 0.2%
- Beam angle: ±6°
- Protection: Short-circuit, reverse polarity and overvoltage
- Protection degree IP 67, NEMA 4X
- M12 plug
