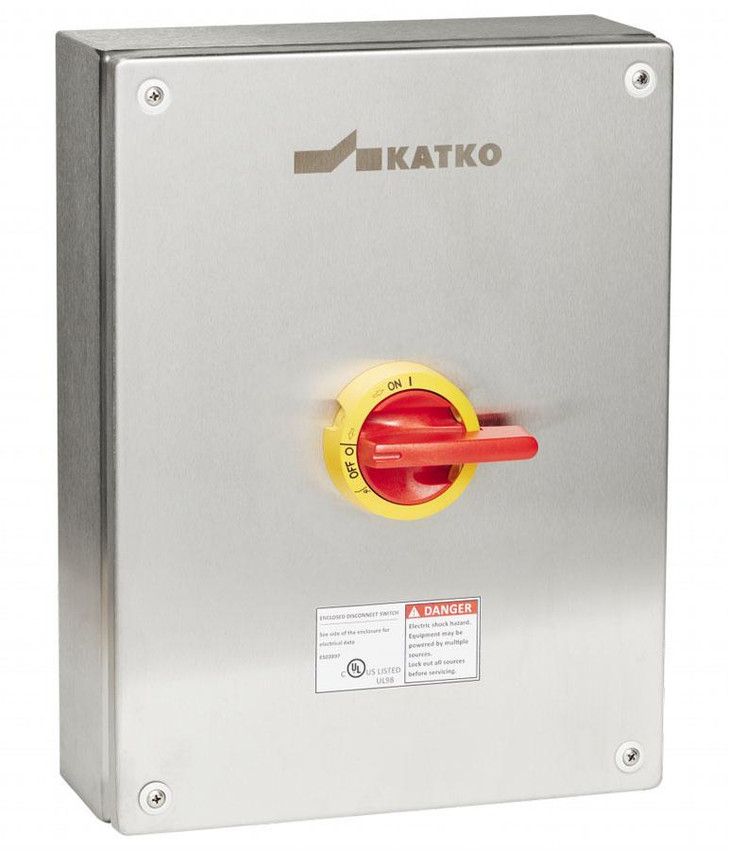

KER360UL98

Altech offers a complete line of UL98 open and enclosed disconnect switches!

• Enclosed switches are available in plastic, sheet metal and stainless steel enclosures
• Every design is lockable in the OFF position
• Switching mechanism speed is independent of the operator
• Silver contacts give safe and durable operation
• Accessories (available under accessory tab) include 4th/neutral pole, auxiliary switches, shafts, door interlock handles and touch protectors

UL98 disconnect switches are rated as a branch circuit disconnect switch.

You can learn more from our blog 'UL489 vs UL98 - When and Where to Apply'.

Features Include:

• General Purpose Current: 60 A
• Maximum Voltage: 600V AC
• Short Circuit Withstand Rating/Fuze Size and Type: 50 kA/60 A Class J
• Terminal Size Acceptability (Cu only, 75°C): 8-1/0 AWG

Horsepower Rating/HP:

• 1 Phase/120V AC: 3 HP
• 1 Phase/240V AC: 7.5 HP
• 3 Phase/240V AC: 20 HP
• 3 Phase/480V AC: 40 HP
• 3 Phase/600V AC:60 HP

Need More Information?

• Altech UL98 Disconnect Switches Flyer
• Altech UL98 Disconnect Switches Catalog
