KEM3100UL98

KEM3100UL98

Alt: KEM Series

$467.40

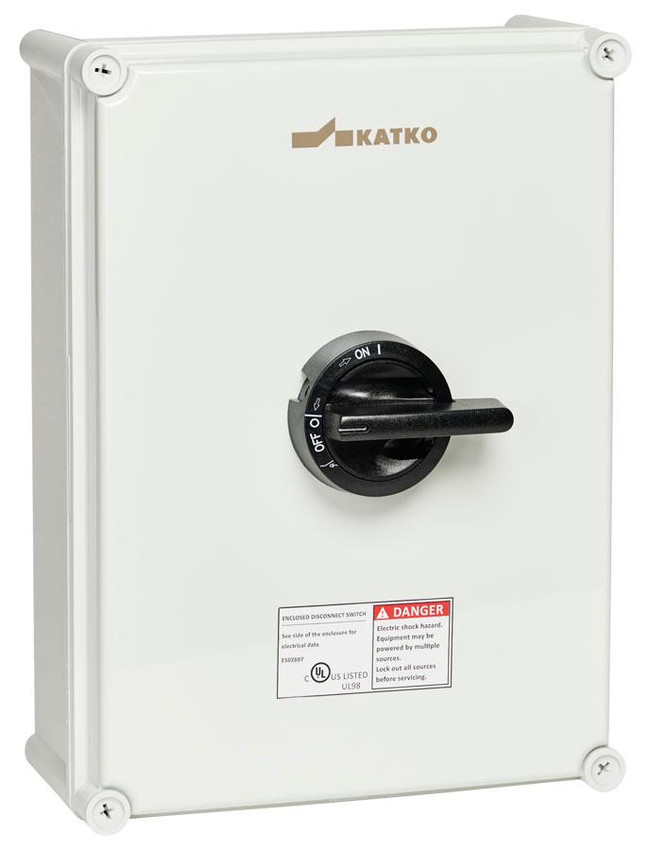

UL98 Disconnect Switch, Polycarbonate, 3-Pole, 100A, 600VAC, MF11UL, Black Handle

Weight:
7.44 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
These enclosed disconnect switches can be used locally at the motor!
Description

Altech offers a complete line of UL98 open and enclosed disconnect switches!

  • Enclosed switches are available in plastic, sheet metal and stainless steel enclosures
  • Every design is lockable in the OFF position
  • Switching mechanism speed is independent of the operator
  • Silver contacts give safe and durable operation
  • Accessories (available under accessory tab) include 4th/neutral pole, auxiliary switches, shafts, door interlock handles and touch protectors

UL98 disconnect switches are rated as a branch circuit disconnect switch.

You can learn more from our blog 'UL489 vs UL98 - When and Where to Apply'.

Features Include:

  • General Purpose Current: 100 A
  • Maximum Voltage: 600V AC
  • Short Circuit Withstand Rating/Fuze Size and Type: 50 kA/100 A Class J
  • Terminal Size Acceptability (Cu only, 75°C): 8-1/0 AWG

Horsepower Rating/HP:

  • 1 Phase/120V AC: 5 HP
  • 1 Phase/240V AC: 10 HP
  • 3 Phase/240V AC: 25 HP
  • 3 Phase/480V AC: 50 HP
  • 3 Phase/600V AC:75 HP
