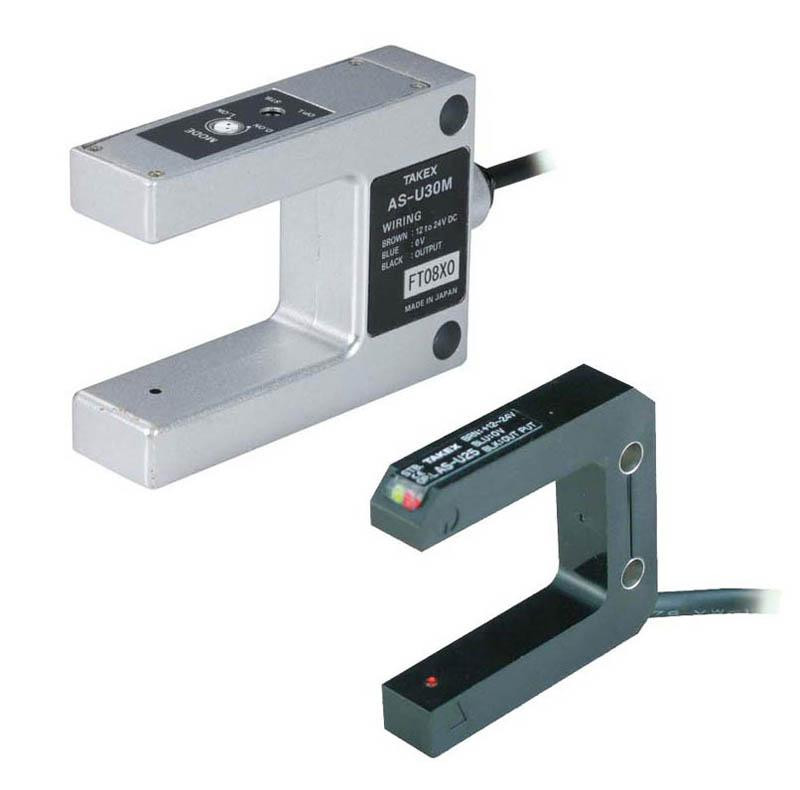

Product image is representative only, please verify specifications.
AS-U30DPN
$116.45
U-Shaped Embedded Amplifier Photo Sensors, 19mm Fixed Detecting, PNP, Dark On, LED Red, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
U-Shaped Embedded Amplifier Photo Sensors 19mm Fixed Detecting, PNP, Dark On, LED RED, IP67
Specifications
Light Source
LED
NPN or PNP
PNP (Source)
Light On/Dark On
Dark ON
Sensing Method
See Spec or N/A
Type of Photoelectric
See Spec or N/A
All - Specific Ratings
IP67
Series
See Specs
Size
See Spec
Warranty
1 Year
Weight
.5
Features Include:
- Detection Method: Through beam type (U-shaped)
- Detecting Distance: 30mm fixed
- Detection Object: dia.5mm or more Opaque
- Power Supply: 12-24V DC ±10% / Ripple 10% or less
- Current Consumption: 35mA or less
- Output Mode: PNP open collector Rating: sink current 100 mA (30 VDC) or less
- Operation Mode: Dark ON
- Response Time: 0.5ms or less
- Light Souce (light wavelength): Infrared LED (950 nm)
- Indicator: Operation indicator (red LED)
- Short Circuit Protection: Provided
- Material: ABS
- Connection: Attached Cable (outer dimension: dia. 4.2mm) 0.3 mm2 3 cores 2 m
- Ambient Temperature: AS series: -25 - +55C (non-freezing), PU series: -10 - +55C
- Ambient Humidity: 35-85%RH (non-condensing)
- Protective Structure: IP67 (IP 40 for PU10)
- Vibration: 10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
- Shock: 500 VAC for 1 minute
