B075BTW37RX
Alt: ImperviTRAN Series
$161.25

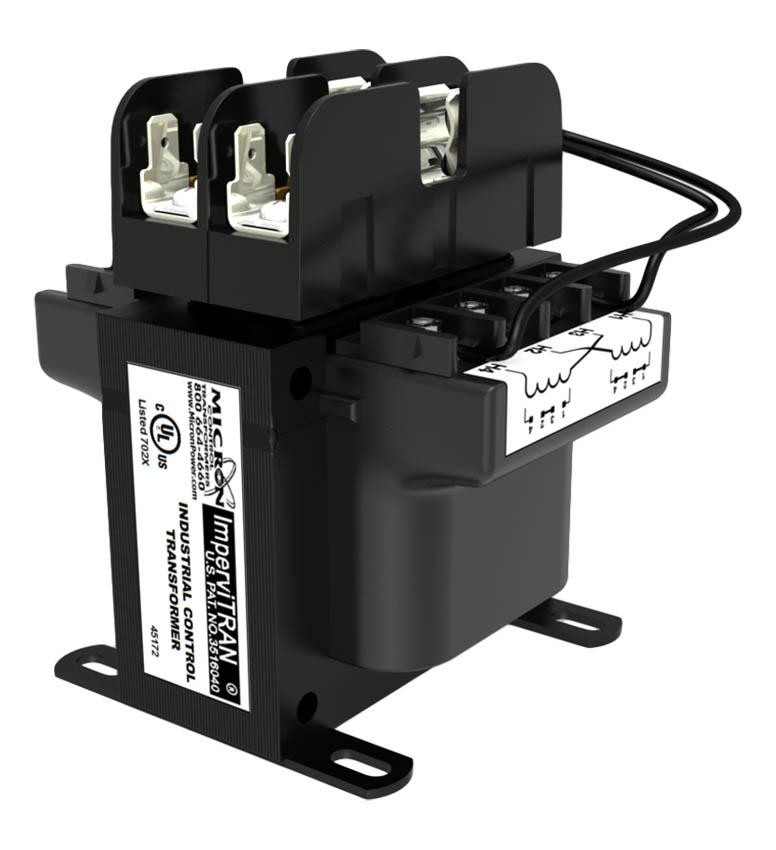

Transformer, 75VA, PRI: 230/460/575VAC, SEC: 95/115VAC, 50/60 Hz, Temperature Class 105C, Dual Class CC Primary Fuse Block, UL/cUL, ImperviTRAN Series
- Weight:
- 4.70 LBS
- Minimum Purchase:
- 1 unit
Description
In 1977 Micron introduced the GlobalTRAN line of control transformers, in 1998 they added low voltage general purpose and buck-boost transformers. They have since added DIN rail mount power supplies to their line as well.
Micron is located in Sterling, Illinois and proudly manufacturers in the USA!
Features Include:
- Primary Voltage: 230/460/575
- Secondary Voltage: 95/115
- Rated V.A.: 75
- Rated Frequency: 50/60
- Fusing Capability: Primary Fusing
- Fusing Detail: Dual Class CC Primary Fuse Block
- Insulation Class: 105
- Estimated Weight: 4.2 lbs
- Has built in mounting plate for easy install of optional primary fuse block
- Has molded-in terminals and terminal barriers
- Terminals have size #10-32 phillips slotted screws
- Meets UL and cUL
