Micron Transformers
B050-2000-1

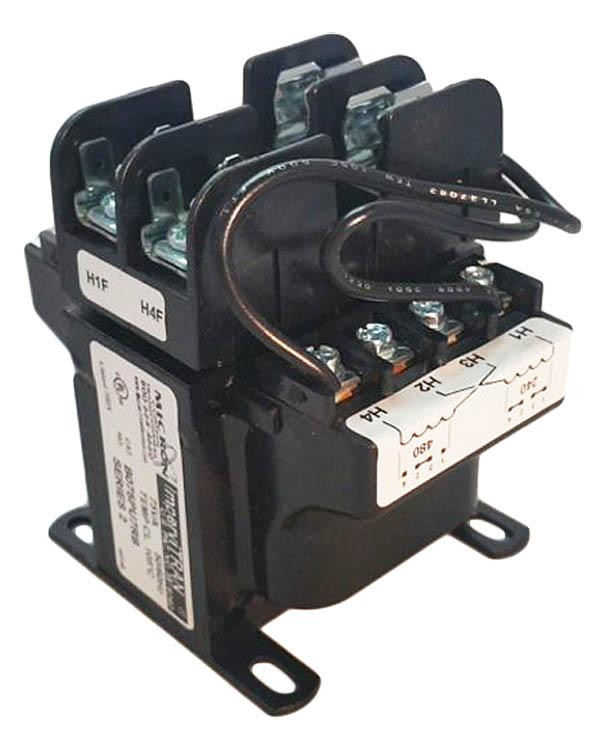

Transformer, 50VA, Primary: 200/208, 220/230/240, 440/460/480VAC, Secondary: 23/110, 24/115, 25/120Vac, 50/60 Hz, Temperature Class 105C, SEC Fuse Clips, UL/cUL, ImperviTRAN Series
$87.00
B050-2000-8
Alt: ImperviTRAN Series
$100.50
Transformer, 50VA, PRI: 200/208, 220/230/240, 440/460/480VAC, SEC: 23/110, 24/115, 25/120Vac, 50/60 Hz, Temperature Class 105C, Dual Class CC PRI Fuse Block and SEC Fuse Clips, UL/cUL, ImperviTRAN Series
- Weight:
- 4.80 LBS
- Minimum Purchase:
- 1 unit
Description
In 1977 Micron introduced the GlobalTRAN line of control transformers, in 1998 they added low voltage general purpose and buck-boost transformers. They have since added DIN rail mount power supplies to their line as well.
Micron is located in Sterling, Illinois and proudly manufacturers in the USA!
Features Include:
- Primary Voltage: 200/220/440, 208/230/460, 240/480
- Secondary Voltage: 23/110, 24/115, 25/120
- Rated V.A.: 50
- Rated Frequency: 50/60
- Fusing Capability: Primary & Secondary Fusing
- Fusing Detail: Dual Class CC Primary Fuse Block and Secondary Fuse Clips
- Insulation Class: 105
- Estimated Weight: 4.3 lbs
- Has built in mounting plate for easy install of optional primary fuse block
- Has molded-in terminals and terminal barriers
- Terminals have size #10-32 phillips slotted screws
- Meets UL and cUL
