Micron Transformers
B5K0-0504-3H
Transformer, 5000VA, 43.48/21.74 Amps, Primary: 220x440, 230x460, 240x480V | Secondary: 110/115/120V
$1,285.50

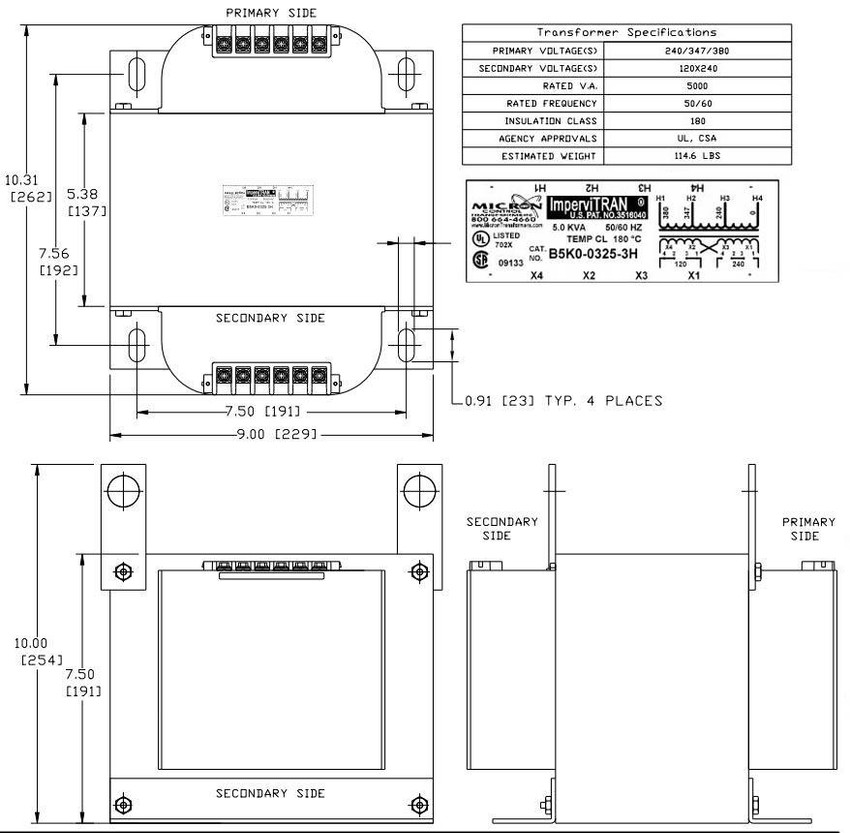

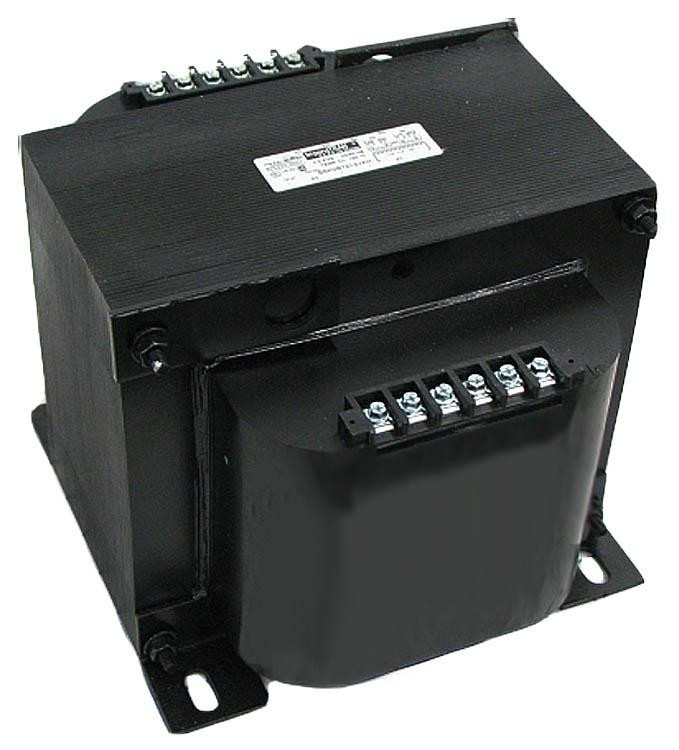

B5K0-0325-3H
$1,609.50
Transformer, 5000VA, 41.67/20.83 Amps, Primary: 240/347/380V | Secondary: 120x240V
- Weight:
- 110.00 LBS
- Minimum Purchase:
- 1 unit
Description
Micron is well known throughout the transformer industry and has also added power supplies to their product mix. They have been an industry leader for more than 40 years!
ImperviTRAN® is the standard, reliable industrial control circuit transformer. This is the most accepted transformer in the industry!
- Epoxy encapsulated coils
- 20 year warranty!
- Secondrary fuse cilps where applicable
- Molded-in terminals and phil-slot screws
- Optional primary fusing
- Molded terminal barriers
GlobalTRAN® was created when new compliance standards for transformers were released and is compliant with EN61558-2 (replaced previous standard on 12/31/2003).
- Carries the CE mark
- 20 year warranty
- Epoxy encapsulated coils
- SafeTouch terminals for additional safety
- Optional integral primary and/or secondary fusing
- Molded in terminals and phil-slot screws
DINergy is Micron's family of DIN rail mounted power supplies.
- 85-264VAC input
- Compact, high efficiency
- Available with UL1604 Class 1 Division 2 for hazardous locations
- 3 year warranty
Marshall Wolf Automation is your authorized Micron distributor!
- ImperviTRAN transformers from Micron
- 'K' in suffix means installed secondary fuses clips
- 'R' in suffix means installed Class 'CC' primary fuse block
- 2 letter suffix - Temperature Class 105°C
- 3-letter suffix ending in 'F' - Temperature Class 130°C
- 3-letter suffix ending in 'H' - Temperature Class 180°C
- UL Listed - File #E46323
- CSA Approved - File#LR27533
- Marshall Wolf Automation is your authorized Micron distributor
