B350-2007-8F

Name: B350-2007-8F
Brand: Micron Transformers
SKU: B350-2007-8F
Price: 212.25 USD
Availability: InStock

Alt: ImperviTRAN Series

$212.25

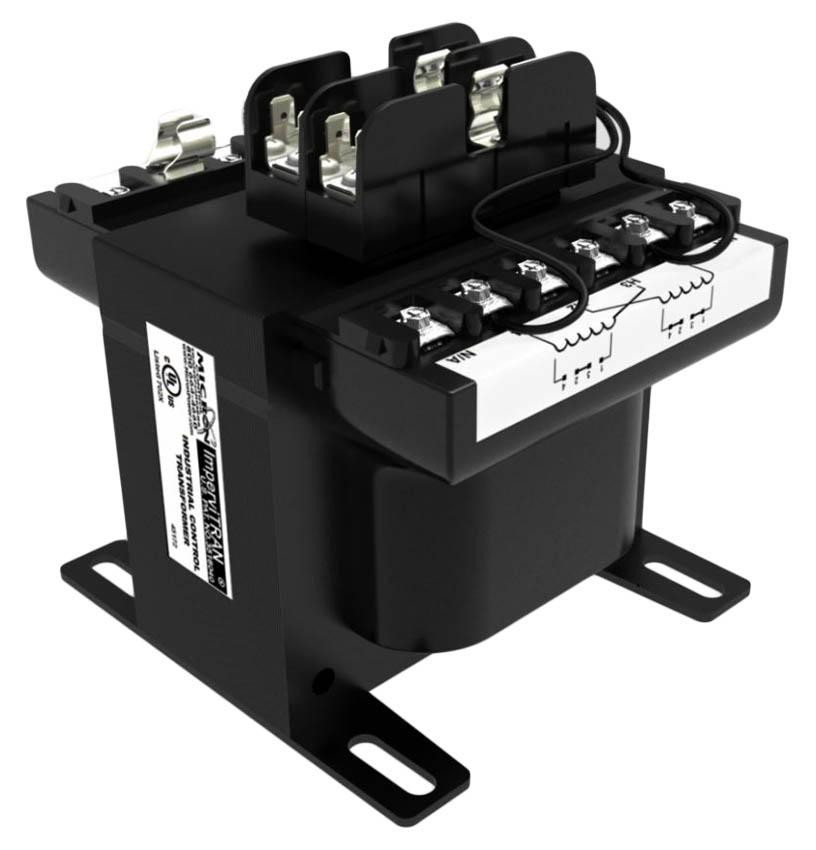

Transformer, 350VA, PRI: 200/208, 220/230/240, 440/460/480VAC, SEC: 23/110, 24/115, 25/120Vac, 50/60 Hz, Temperature Class 130C, Dual Class CC PRI Fuse Block and SEC Fuse Clips, UL/cUL, ImperviTRAN Series

SKU:: B350-2007-8F
Weight:: 17.40 LBS
Minimum Purchase:: 1 unit

Current Stock:

Quantity:

Current Stock:

Adding to cart… The item has been added

Description
Accessories

Description

In 1977 Micron introduced the GlobalTRAN line of control transformers, in 1998 they added low voltage general purpose and buck-boost transformers. They have since added DIN rail mount power supplies to their line as well.

Micron is located in Sterling, Illinois and proudly manufacturers in the USA!

Features Include:

Primary Voltage: 200/220/440, 208/230/460, 240/480
Secondary Voltage: 23/110, 24/115, 25/120
Rated V.A.: 350
Rated Frequency: 50/60
Fusing Capability: Primary & Secondary Fusing
Fusing Detail: Dual Class CC Primary Fuse Block and Secondary Fuse Clips
Insulation Class: 130
Estimated Weight: 16.4 lbs
Has built in mounting plate for easy install of optional primary fuse block
Has molded-in terminals and terminal barriers
Terminals have size #10-32 phillips slotted screws
Meets UL and cUL

Technical Information:
