Micron Transformers
B3K0-0324-3H
Transformer, 3000VA, 25.0/12.5 Amps, Primary: 240/347/380V | Secondary: 120x240V
$1,073.25
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
B3K0-0503-3H
Alt: ImperviTRAN Series
$749.25

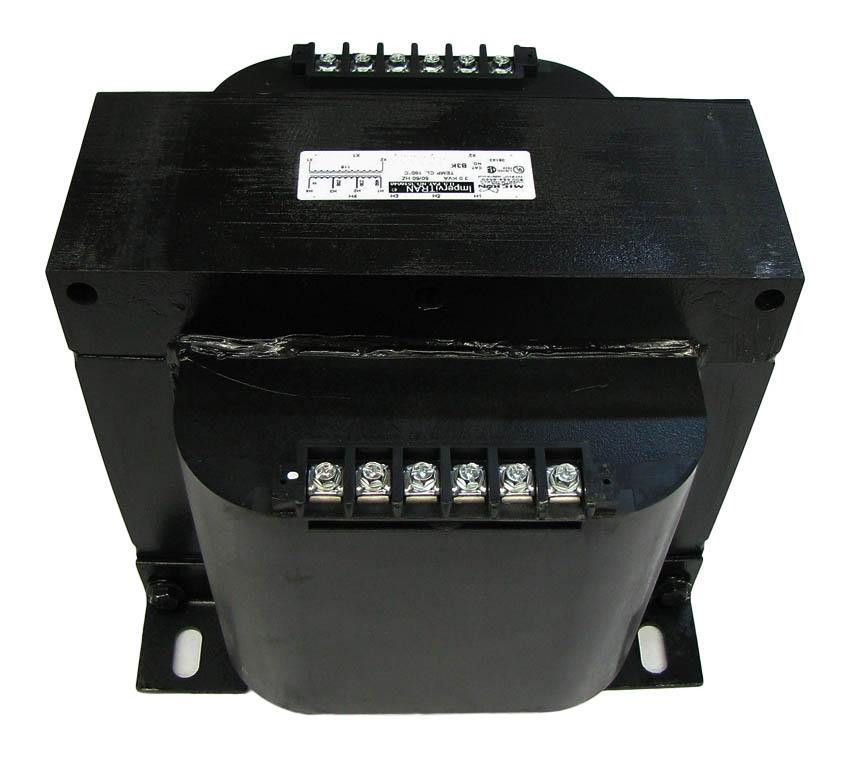

Transformer, 3.0KVA, Primary: 240x480/230x460/220x440VAC, Secondary: 120x240/115x230/110x220VAC, 50/60 Hz, Temperature Class 180C, UL/CSA, ImperviTRAN Series
- Weight:
- 82.00 LBS
- Minimum Purchase:
- 1 unit
Description
In 1977 Micron introduced the GlobalTRAN line of control transformers, in 1998 they added low voltage general purpose and buck-boost transformers. They have since added DIN rail mount power supplies to their line as well.
Micron is located in Sterling, Illinois and proudly manufacturers in the USA!
Specifications
Alternate Part Number
ImperviTRAN Series
Phase
Single Phase
Primary Voltage
220x440, 230x460, 240x480
Series
ImperviTRAN
Type of Transformer
Control Power
VA
See Spec or N/A
Warranty
3 Years
Weight
82
Features Include:
- Primary Voltage: 240x480, 230x460, 220x440
- Secondary Voltage: 120x240, 115x230, 110x220
- Rated V.A.: 3000
- Rated Frequency: 50/60
- Fusing Capability: No Fusing
- Fusing Detail: No Fusing
- Insulation Class: 180
- Estimated Weight: 80 lbs
- Has built in mounting plate for easy install of optional primary fuse block
- Has molded-in terminals and terminal barriers
- Terminals have size #10-32 phillips slotted screws
- Meets UL and cUL
