Product image is representative only, please verify specifications.
Q005FEKF
Alt: Includes Wall Mounting Kit
Transformer, Single Phase, 5kVA Primary: 347/380V; Secondary: 120/240V, 50/60Hz, NEMA 3R, Harsh Environment
- Weight:
- 176.20 LBS
- Minimum Purchase:
- 1 unit

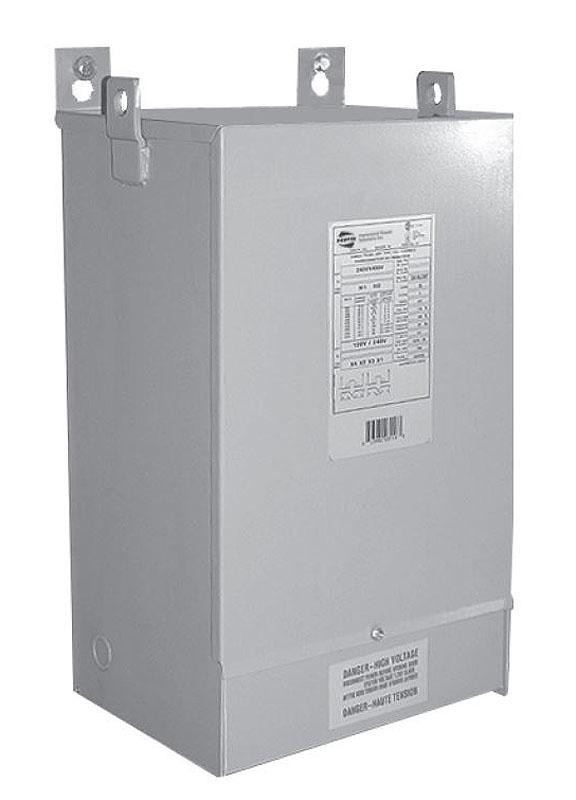

Our Hammond HPS Titan is an encapsulated transformer that is designed for hazardous locations and harsh environments.
HPS Titan® series transformers are UL Listed for “Class 1, Divison 2, Groups A, B, C, D and Class I, Zone 2, Group IIC, T3 Hazardous Locations” and are ABS Type Approved for “Marine Duty Service and Offshore Applications – Electrical Distribution and Propulsion”. They also have a North American Temperature Classification of T3C/T3A which means they will remain cool under load.
This series has a 10 year warranty.
Marshall Wolf Automation is an authorized Hammond Power Solutions distributor.
Features Include:
- Frequency: 60 Hz (50/60 Hz on units with 380V primary)
- Insulation System: 130°C (80°C rise) standard on all units
- Encapsulation: All units are encapsulated with electrical grade silica sand and resin compounds
- Enclosure Type: Heavy duty type 3R, optional type 4, 4X (stainless steel) and 12
- Termination: Front accessible separate high and low voltage lead wires or copper tabs
- Conduit Knock-Outs: Standard side and rear knock-outs on all units (no knock-outs on Stainless Steel enclosures)
- Mounting: Standard Wall Mounting, Lifting provisions standard on all units
- Seismic: Seismically certified in accordance with IBC 2009; Section 1613 Earthquake Loads, for SDS <= 2.00g, z/h = 1.0, and IP = 1.5

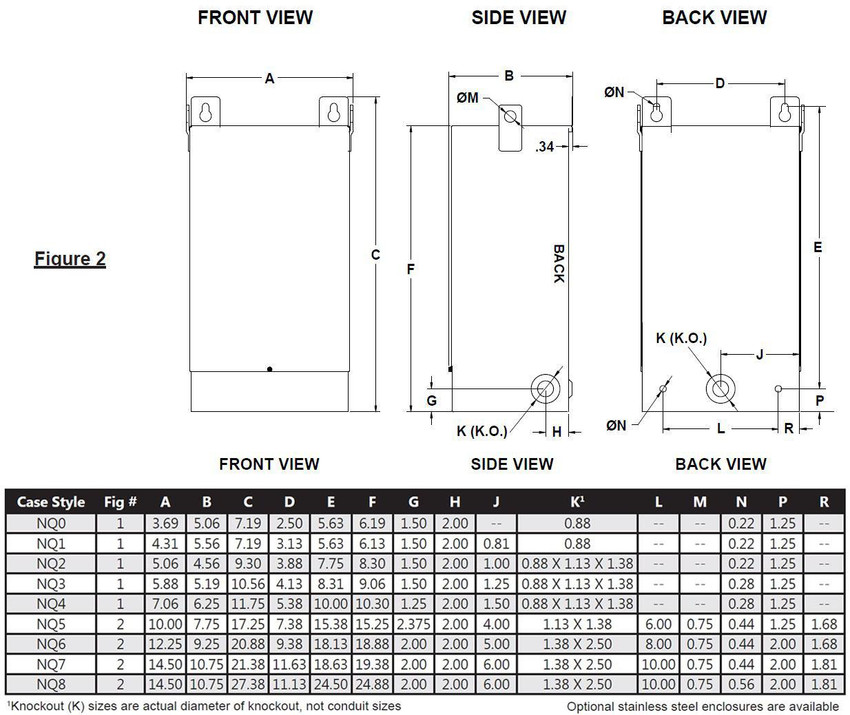

- Dimensions (WxDxH): 10.00 x 7.75 x 17.25 in
