Micron Transformers
B150-2004-GAF
Transformer, 150VA, 1.30 Amps, Primary: 220x440, 230x460, 240x480V | Secondary: 110/115/120V
$141.00
B150-0653-5F
Alt: ImperviTRAN Series
$139.50

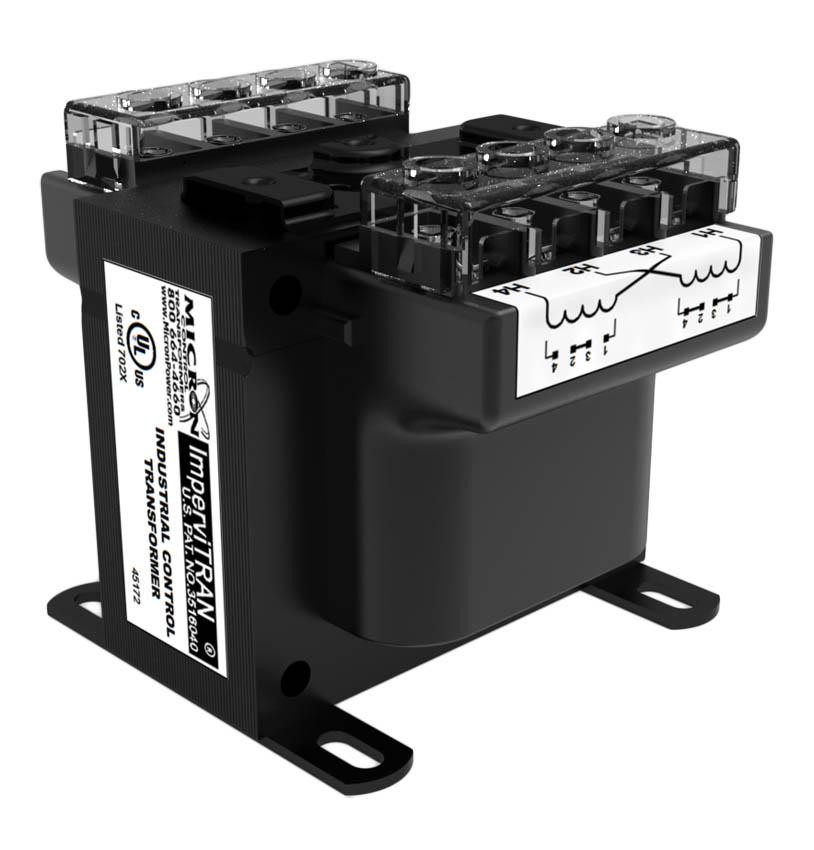

Transformer, 150VA, Primary: 690VAC, Secondary: 120x240VAC, 50/60 Hz, Temperature Class 130C, Removable IP-20 Safetouch™ Covers, ImperviTRAN Series (Please Note 10 Piece Minimum May Be Bypassed By Paying A $100 Set Up Fee, Please Contact Cu
- Weight:
- 5.60 LBS
- Minimum Purchase:
- 10 units
Description
In 1977 Micron introduced the GlobalTRAN line of control transformers, in 1998 they added low voltage general purpose and buck-boost transformers. They have since added DIN rail mount power supplies to their line as well.
Micron is located in Sterling, Illinois and proudly manufacturers in the USA!
Features Include:
- Primary Voltage: 690
- Secondary Voltage: 120x240
- Rated V.A.: 150
- Rated Frequency: 50/60
- Fusing Capability: No Fusing
- Fusing Detail: No Fusing
- Insulation Class: 105
- Estimated Weight: 5.1 lbs
- Has built in mounting plate for easy install of optional primary fuse block
- Has molded-in terminals and terminal barriers
- Terminals have size #10-32 phillips slotted screws
- Meets UL and cUL
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$160.50
$126.75
Micron Transformers
B350-0655-5F
Transformer, 350VA, Primary: 690VAC, Secondary: 120x240VAC, 50/60 Hz, Temperature Class 130C, Removable IP-20 Safetouch™ Covers, ImperviTRAN Series (Please Note 10 Piece Minimum May Be Bypassed By Paying A $100 Set Up Fee, Please Contact Cu
$178.50
Micron Transformers
B150-2104-GAF
Transformer, 150VA, 6.25/1.30 Amps, Primary: 208/230/460V | Secondary: 24/115V
$172.50
$160.50
Micron Transformers
B150-2044-GAF
Transformer, 150VA, 1.30 Amps, Primary: 550/575/600V | Secondary: 110/115/120V
$160.50
Micron Transformers
B150-2064-GAF
Transformer, 150VA, 1.37/0.69 Amps, Primary: 380/400/415V | Secondary: 110x220V
$189.75
Micron Transformers
B500-0656-5F
Transformer, 500VA, Primary: 690VAC, Secondary: 120x240VAC, 50/60 Hz, Temperature Class 130C, Removable IP-20 Safetouch™ Covers, ImperviTRAN Series (Please Note 10 Piece Minimum May Be Bypassed By Paying A $100 Set Up Fee, Please Contact Cu
$246.75
