SMARTTOUCH-1G-B

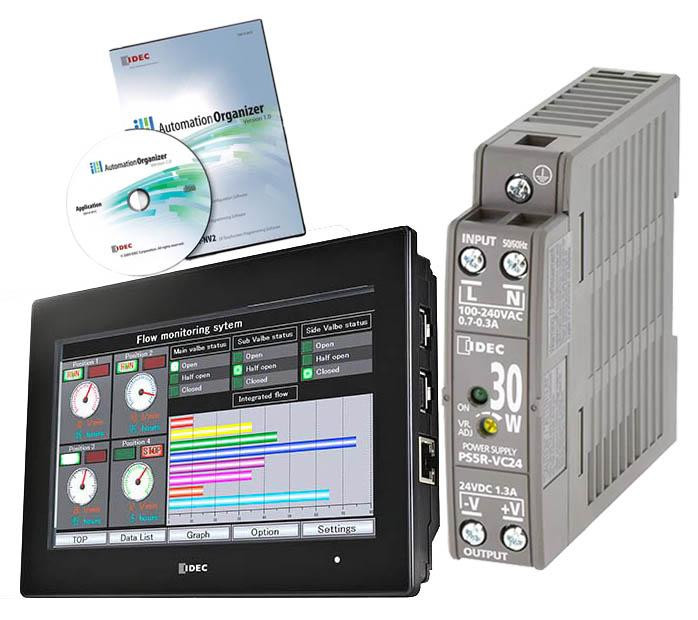

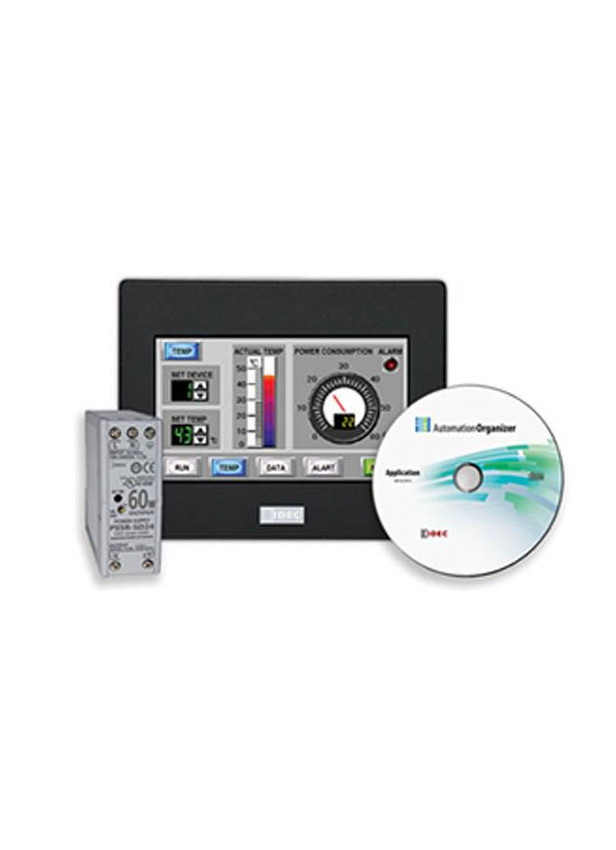

The SMARTTOUCH-1G-B operator interface starter kit includes a black bezel HG1G TFT 65K color touchscreen plus power supply, software and programming cable.

IDEC's super-bright 4.3” HG1G TFT LCD series of touchscreens offer a high resolution of 480 x 272 pixels, and a vivid 65K color-display with a brightness of 800cd/m2.

With most of the features and functionalities found in a larger screen, including remote monitoring and control and an FTP function, HG1G also supports multiple communications – up to four protocols simultaneously – and has a best-in-class LED backlight life of 70,000 hours! This provides many years of operation, as the life is extended by a backlight that can be automatically switched off when the unit is not in use.

The HG1G Series is avalable as:

• HMI Only: HG1G-4VT22TF-B (black bezel) or HG1G-4VT22TF-S (silver bezel)
• HMI Starter Kit that includes the black bezel display, power supply, software and programming cable (SMARTTOUCH-1G-B)
• PLC/HMI Starter Kits - KIT-FC6A-(16/24)--(RA/RC)-HG1G (16=16 i/o, 24= 24 i/o and RA=100-240VAC relay out, RC=24VDC relay out)

HG1G touchscreens can also be mounted with the screen orientation set to portrait or landscape mode depending on space requirements. It’s flexible and small enough to fit in a tight space, and priced to fit a tight budget!

HMI Kit + HG1G Touchscreen:

• 4.3" 65,536 Color TFT LCD
• Includes power supply, software and programming cable
• Super Bright: 800 cd/m2
• High Resolution: 480 x 272 pixels
• Supports up to Four Protocols simultaneously
• Remote Internet Access, Monitor & Control
• FTP Server Function
• Backlight Lifespan: 75,000 hours
• Rated Power Voltage: 12-24 VDC
• Operating temperatures: -20°C to 55°C
• Serial, Ethernet, & USB ports
• IP66F/IP67F, Type 4X, 13, Class 1 Div 2
