8103090002
Alt: N1030T-PR
Timer/Temperature Controller, 1 Relay+Pulse Out, 48x48mmElectronic Indicators and Thermostats
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit

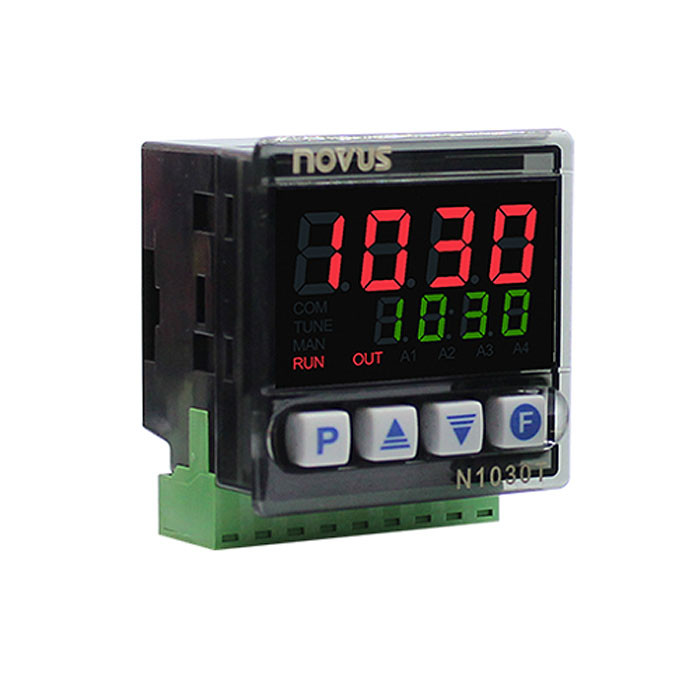

The Novus N1030 is a compact, high-performance PID temperature controller that is low cost and readily available!
At just 35mm deep, this controller is specific to places where space matters.
As a result of the innovative removable connector, the commissioning and installation of the N1030 is easy and fast.
Ideal for machine and equipment manufacturers this temperature controller automatically calculates the most suitable PID control parameters for each process, increasing the control reliability.
It is also available in versions with timer, relay + pulse, relay + relay, standard or 24 V supply, to suit the most diverse processes.
N1030 has two outputs always available that can be configured either as control or as alarms and displays configurable in ° C and ° F.
The front panel - resistant to water jets and protected against dust – has a low profile, which gives the controller a differentiated design. Made of anti-flame material and with 3-year factory warranty.
The N1030 is the best choice for anyone looking for high performance and low cost.
Learn more about the Novus N1030 here!
Features Include:
- Single Loop PID and ON/OFF controller
- PID auto tuning
- Two independent outputs available
- Dual relay output or 1 pulse and 1 relay versions
- Six alarm functions: LO, HI, differential, differential LO, differential HI, sensor break
- Initial blocking alarm function
- Adjustable alarm hysteresis
- Thermocouples J, K, T and Pt100 input
- Temperature unit °C or °F
- Decimal place indication
- Configurable setpoints limits
- Password protected configuration
- Factory configuration parameters recovery
- Dual red and green four-digit display
- Front panel material PC UL94 V-2
- Enclosure material: PC UL94 V-2
- Front panel protection: IP65
- Operating environment: 0 to 60 ºC, 20 to 80 % RH
- Dimensions: 48 x 48 x 35 mm
- Power supply: 100 to 240 Vac/dc or 12 to 24 VDC / 24 VDC/AC
- Detachable terminal block
