Autonics
AT8PMN-6

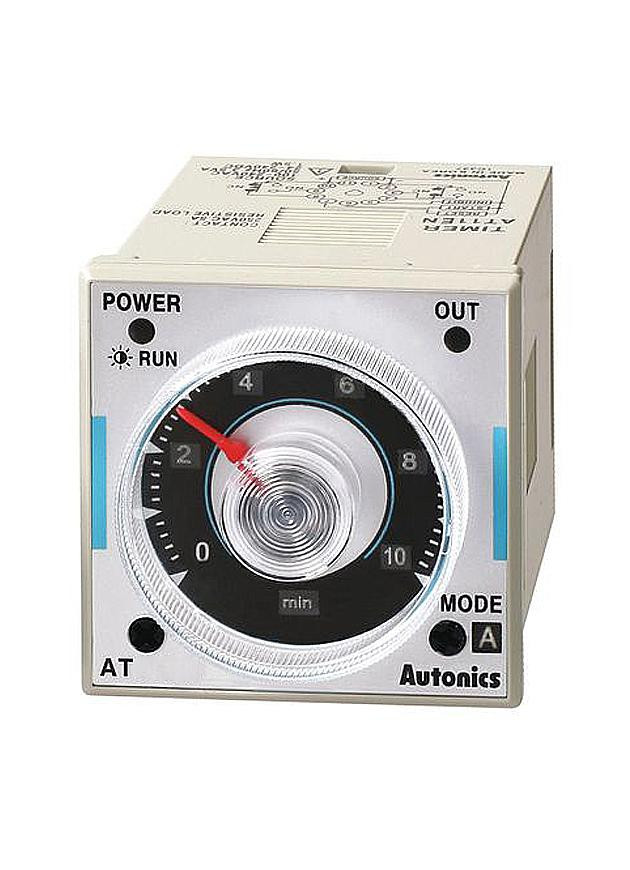

Timer, Power OFF Delay, 48x48mm, DIN, Minutes, Analog, 8-Pin Plug, 100-120VAC, 50/60Hz
$71.00
AT8PMN
Alt: AT8/AT11 Series
$71.00
Timer, Power OFF Delay, 48x48mm, DIN, Minutes, Analog, 8-Pin Plug, 200-240VAC, 50/60Hz
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Our Autonics AT series are 1/16th DIN multifunction timers.
- AT8 are power ON start
- AT11 are signal ON start
- EN is instantaneous SPDT and time limit SPDT
- DN is time limit DPDT (2c)
- Just 'N' is time limit DPDT (2c) or instantaneous SPDT selectable
AT8 timers will require an 8-pin socket (PG08/PS08) and the AT11 timers require an 11-pin socket (PS11/PG11).
Features Include:
- Time setting range (AT8PSN : 0.05 to 10sec, AT8PMN : 0.05 to 10min.)
- Simple time setup and direct read of time range
- Application : Protect circuit when momentary power failure and start it again
