DAA51CM24
Alt: Minimum Order 5 Pieces, Price per Piece
$52.00

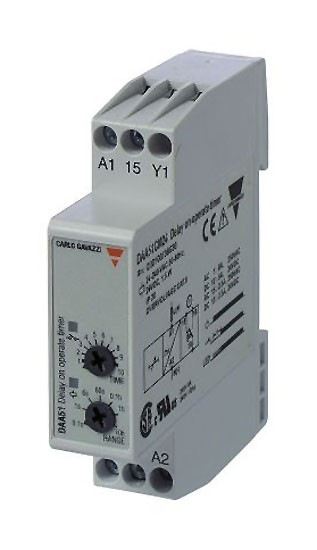

Timer, Delay On, 0.1s-100h, SPDT, 24VDC/24-240VAC, DIN Rail Mount
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 5 units
Description
Timer, Delay on, 0.1s-100h, SPDT, 24VDC/24-240VAC, DIN-Rail Mount
Features Include:
- Time range 0.1 s to 100 h
- Rated Insulation Voltage: 250 VAC (rms)
- Features Include: 17.5 x 81 x 67.2 mm
- Knob selection of time range
- Knob adjustable time setting
- Automatic start
- Repeatability: ≤ 0.2%
- Output: 5 A SPDT or 5 A DPDT relays
- For mounting on DIN-rail in accordance with DIN/EN 50 022
- 17.5 mm (DAA51C) or 35.5 mm (DAA71D) DIN-rail housing (DIN 43880)
- Combined AC and DC power supply
- LED indication for relay status and power supply ON
