RTE-B2AF20

Our Idec RTE series of analog timers offers these key features:

• 20 time ranges and 10 timing functions
• Time delays up to 600 hours
• 10A contact rating
• 2 form C delated output contacts

Here is what the part numbers mean:

RTE- (1: Pin/Blade)(2: Function)(3: Input Voltage)

• 1: Terminal style: P (pin) or B (blade)
• 2: Function: 1 (power triggered: On-delay, interval, cycle OFF, cycle ON) or 2 (Start input triggered: On-delay, cycle OFF, cycle ON, signal ON/OFF delay, OFF-delay, one shot)
• 3: Input voltage: AF20 (100 to 240VAC input), AD24 (24VAC/DC), D12 (12VDC)

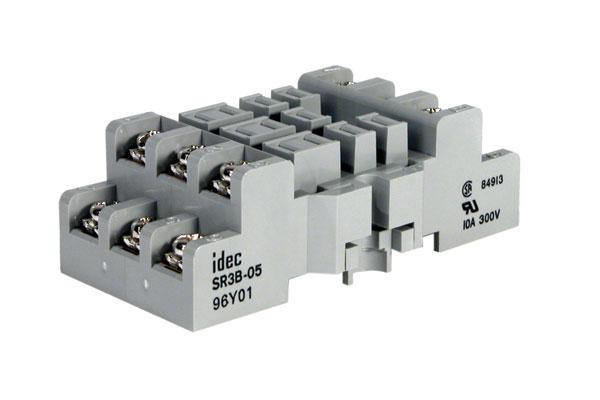

RTE-P1 uses an 8 pin socket (SR2P-05/SR2P-05C), RTE-P2 uses an 11 pin socket (SR3P-05/SR3P-05C), RTE-B1 or B2 is blade type socket (SR3B-05).

Series Features Include:

• 20 time ranges and 10 timing functions
• Time delays up to 600 hours
• Space-saving package
• High repeat accuracy of ± 0.2%
• ON and timing OUT LED indicators
• Standard 8- or 11-pin and 11-blade termination
• 2 form C delayed output contacts
• 10A Contact Rating
