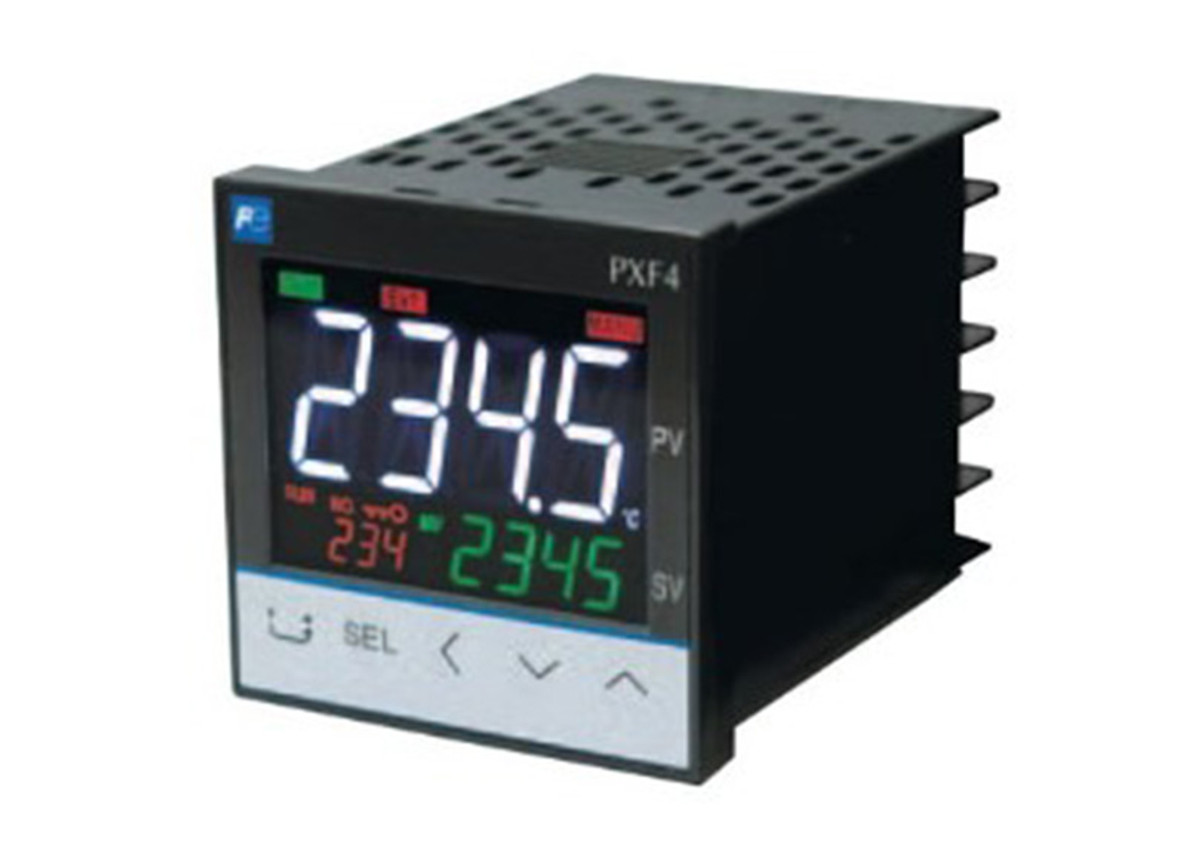

The Fuji PXF Series was developed as the successor of the standard model PXR series of Fuji temperature controllers. Featuring fast sampling speed (50 ms) equal to the PXH, highly accurate input indication, and an universal input, in addition to various functions found in the PXG series while maintaining a competitive price range.
Fuji's PXF compact temperature contoller comes with a 49mm x 49mm front panel with a large, white LCD and 58mm depth behind panel. Equipped with multiple input/output and sophisticated control functions, the PXF serves as a great temperature controller with a wide range of use.
Features Include:
Precise control: The PXF achieves a processing speed of 50 ms, 10 times faster than conventional models. Reading accuracy has been improved from ±0.5% to ±0.2%*. *Comparison under 0–850°C range, with RTD.
Easy-to-see display: MVA LCD* which offers high contrast and wide viewing angle. Process value is displayed in white. *Minimal translucent type vertical alignment liquid crystal display.
Practical options: Simple watt-hour metering function: allows energy consumption monitoring.
Operating days alarm: Notifies you of the appropriate time for maintenance work.
Most compact class in industry: 36% smaller (than conventional models) and 58-mm depth shallow body helps downsize your facility.
Universal input: You can use any input among RTD, thermocouples, voltage, current, and mV. The set-up for input change is very easy, only requires parameter change. This allows reduction of maintenance parts!
Temperature Controller, Universal Input, RTD/mA, Backwards Compatible Wiring to PXR/W/Z, Control Output: SSR Drive, Alarm Output: 2 Points, 24VAC/DC Power Supply
Temperature Controller, Control Output 1: Current, Control Output 2: Voltage, Alarm Output: None, Power Supply: 100 to 240VAC, Options: None, (NOTE: Power Must be Cycled after Input Type Change) , PXF4 Series
