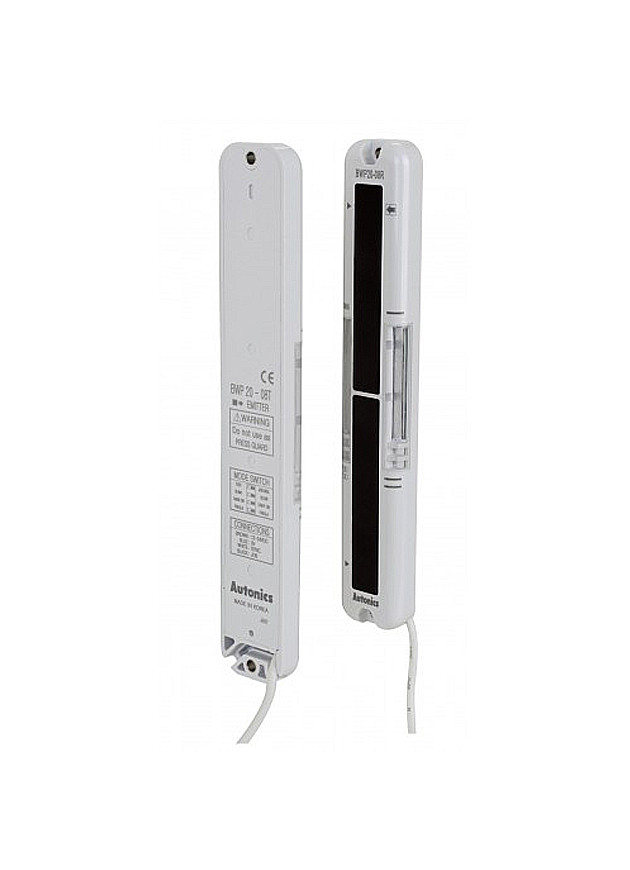

Autonics
BW20-08
Area Sensor, 20mm Optical Axis, 8 Optical Axes, 140mm Sensing Height, NPN, Light ON. 12-24VDC, 300mm (Ø5mm, 4-Wire) Cable, M12 Connector, IP65
$429.00
HE1WPR/08
$1.96
Terminal Block, 8 Pole, Minimum Order of 50 (per Pack), Price per Piece
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 50 units
Description
Altech Corporation was founded in 1984 and is a master distributor for a complete line of industrial automation components. Altech has been a long-time partner of ours and consistently brings high quality and unique products to the market.
They are located in Flemington, New Jersey and are ISO 9001:2015 certified.
Specifications
Amp Rating
20 Amp
Color
White
Mounting
Panel Mount
Poles
See Spec or N/A
Size
See Spec
Type of Product
See Spec
Warranty
1 Year
Weight
0.1
Features Include:

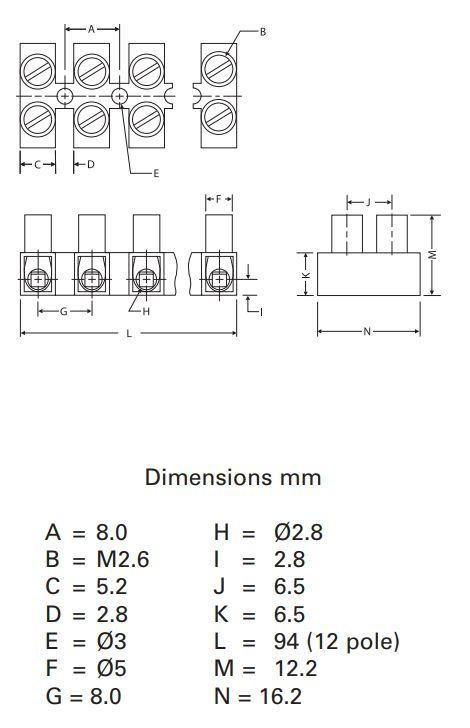

- Pitch Spacing: 8 mm
- Weight Per Piece (12 pole): 16.2 g
- IEC Wire Size: 1 - 2.5 mm
- IEC Voltage Rating: 400 V
- Current Rating: 6 A
- Torque: 4.4 lb-in
- Insulation Material: Polyamide 66/6 V0
- Insert Material: Tinned Brass
- Terminal Screw Material: Blue Chromated Steel
- Wire Stripping Length: 5 mm
- Mounting Hole Diameter: 3.0 mm
- Terminal Screw Size: M2.6
