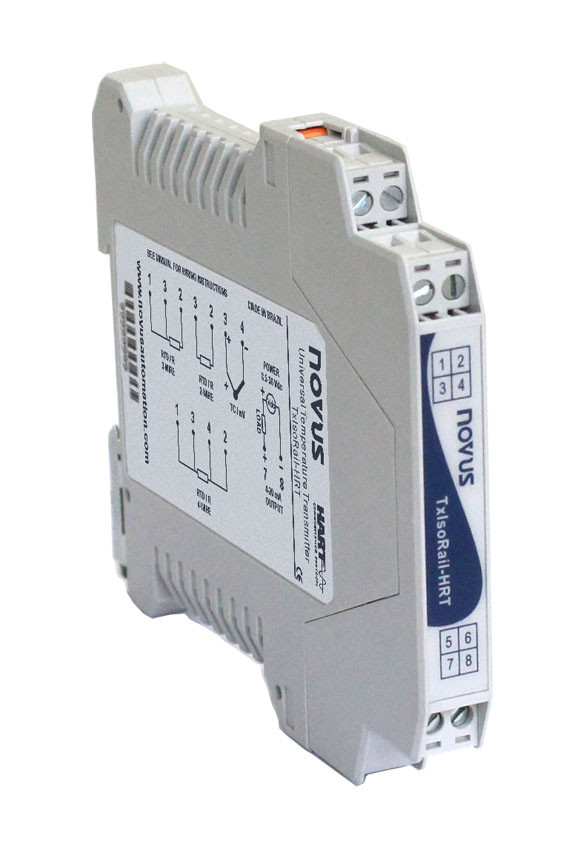

Our Novus TxlsoRail-HRT (8808016100 - DIN rail mount) and TxlsoBlock-HRT (8808000300 - head mount) are a line of temperature transmitters that have HART® protocol certification. They are recognized worldwide for this industry communication standard for smart field devices!
These two new products allow full configuration through the two-wire current loop 4-20mA. This means additional features for you when setting up and monitoring the device.
HART® protocol was launched in the 1980’s to allow two-way communication above and beyond the normal process variables. HART is now supported by more than 40 million field instruments.
You can find the TxConfig-HRT (8816021059- configurator software and interface USB) under accessories.
Features Include:
Input Type: J, K, T, N, R, S, B, E, Pt100, Pt1000, NTC and 0-50 mV
Power Supply: 4-20 mA Loop Powered (8.5 - 36 VDC)
Output Type: 4-20 mA
Output Resolution: 0.25 µA
Dimensions: 114 mm x 99.5 mm (4.49 in x 3.91 in)
Enclosure: ABS UL94-HB
Thermal Drift: < 0.05 % / 25 °C (77 °F)
Isolation Input-Output: 1.5 kVrms
Format / Mounting: 35 mm (TS35) DIN Rail
Operating Conditions: -40 to 85 °C (-40 to 185 °F) 0 to 90% RH
Electric Protection: Reverse Polarity
HART® Version: HART V7, compatible with HART V5
Configuration Interface: Through TxConfig-HRT adapter or HART® certified HandHeld
