8105002540
Alt: N1050-PRRR, 12-24VDC
$143.00
Temperature Controller, USB, RS485, 24V, 3 Relay + Pulse, Only 80mm Depth, 5 Ramp Soak, Timer
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description

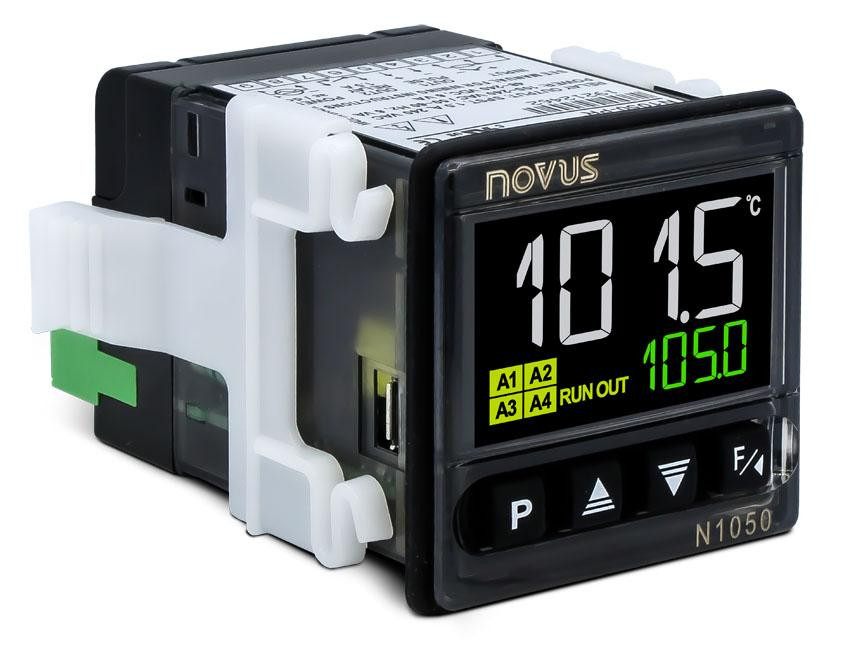

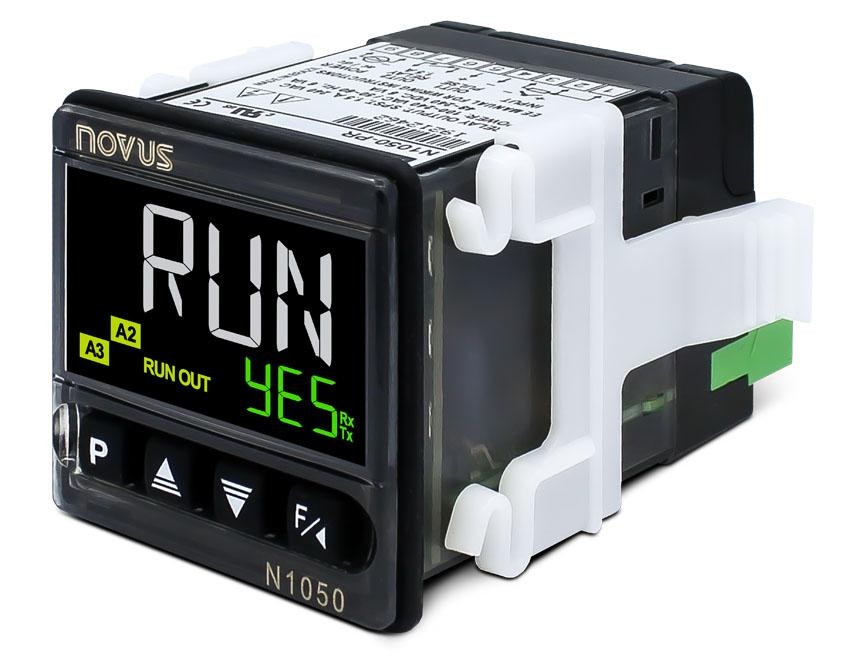

Novus N1050 is a temperature controller that can be configured by display menu, via USB port or optional RS485 Modbus interface.
This series has a number of features:
- High performance PID controller
- LCD display
- PID auto-tuning
- Pulse or relay PWM control mode
- Up to 3 optional output relays
- 5 ramp-and-soak profile programs
- 1/16th DIN
Features Include:
- Power Supply: 100-240 V AC/DC or 12-24 V DC (optional)
- Input Type: Thermocouple J, K T, S and Pt100
- Display: Alphanumeric 11-segment LCD type, high contrast multi viewing angle
- Control Action: Heat or cool
- Output Control: 1 pulse for SSR and relay 3 relays (optional)
- Configuration: Software NOVUS NConfig, via USB (micro-B type)
- Enclosure: 48x48 mm (DIN 1/16) ABS+PC UL94 V-0
- Operating Conditions: Temperature: 0 to 50 °C ( 32 to 122 °F)
Special Functions:
- Soft Start
- PID loop break alarm
- Ramp and soak event
- 2 alarms (7 alarm types)
- Timer function
