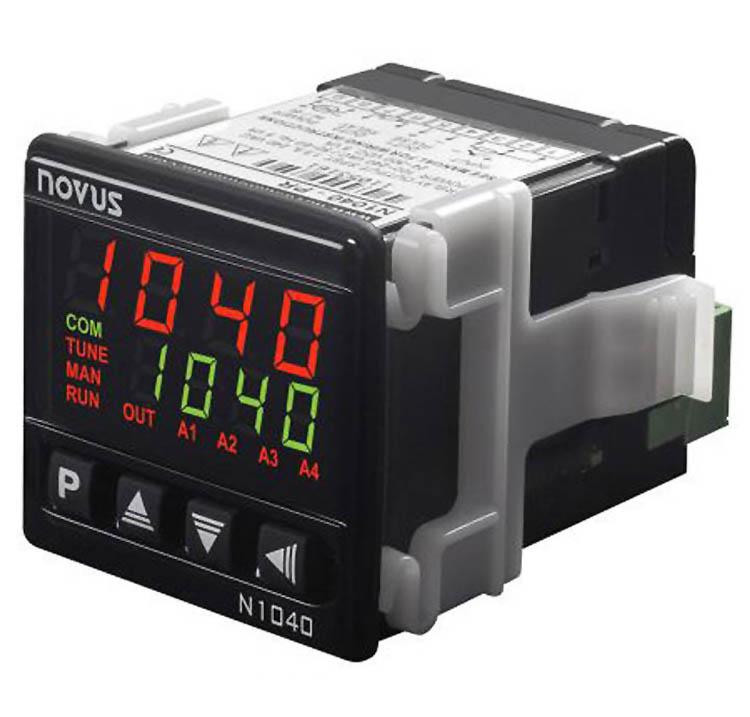

Product image is representative only, please verify specifications.
8104219310
Alt: N1040-T-PRRR USB 24V / N1040T
Timer/Temp. Controller, 3 Relays + Pulse Output, 48x48mm, USB, 24V, IP65
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Our Novus N1040T is an economic time and temperature controller that includes automatic tuning of PID parameters, ON-OFF control and is totally configurable.
This controller has two independent timers with several operation modes that allow timer association to the controller output or to the temperature control.
It accepts Pt100 sensors and thermocouples types J/K/T with decimals on all sensors. It has a fast electrical connection coupler system that reduces installation time.
It also offers 4 configurable outputs for process control, alarm or timing and configuration protection by password and factory calibration recovery.
Did we mention the reduced depth flameproof plastic enclosure and IP65 rated front panel?
Features Include:
- Input: PT100/J/K/T
- Output: 2 SPST relays + 1 SPDT relay + pulse
- Power 100~240 VAC and 48~240 VCC.
- Input type: J, K, T and Pt100
- Accuracy: T/C: 0.25%, Pt100: 0.2%
- Detachable terminal block: Yes
- Dimensions: 48 x 48 x 35 mm (1/16 DIN)
- Front panel thickness: 3.3 mm
- PID auto tuning: Yes
- Control mode: PID, On/Off
- Control Action: Heating or cooling
- Output: SSR Pulse, Relay
- Sampling rate: 200 ms
- Available alarm: 1
- Alarm Types: Absolute Minimum, Absolute Maximum, Differential, Minimum Differential, Maximum Differential and Sensor Break
- Timer: Yes, timer model available
- Parameter lock: Password
- Approval: CE and UL (C e US)
- Front panel protection: IP65
- Power supply: 100-240 VAC / 48-240 VDC or 12-24 VDC / 24 VAC
- Maximum consumption: 5 VA
- Panel Format: 48 x 48 DIN 1/16
- Measure displayed: °C and °F
- Anti-flame material: UL94 V2
