$189.00
TK4H-A4RR
Alt: TK Series
$204.00

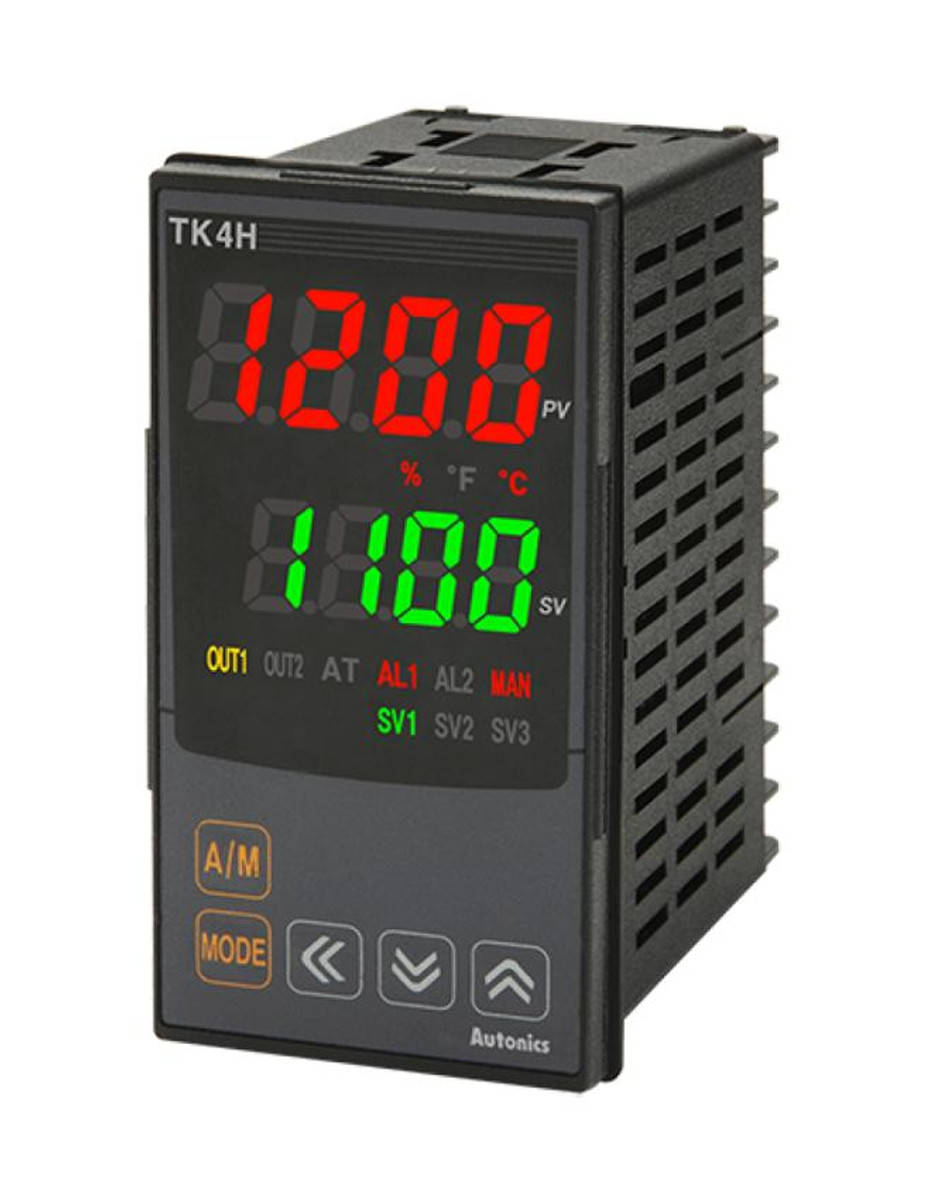

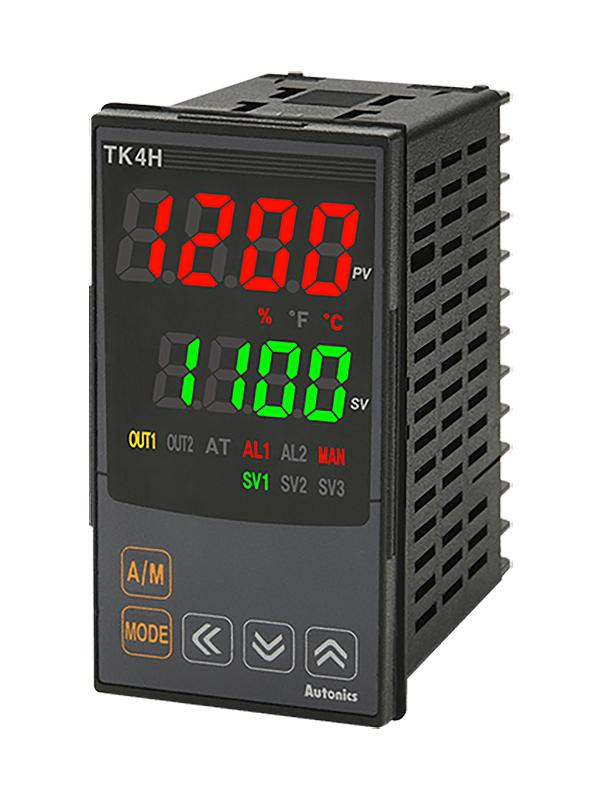

Temperature Controller, 4-Digit 7-Segment LED, DIN 96 x 48mm (HW), 2 Alarm Output + PV Transmission Output, 100-240VAC, 50/60Hz, Relay Contact Output 1, Relay Contact Output 2, IP65 (Front Panel)
- Weight:
- 0.53 LBS
- Minimum Purchase:
- 1 unit
Description
Autonics is a Korean-based company that is a leading provider of automation solutions worldwide. They have had offices in the U.S. since 2001 and have a warehouse and sales office right here in Illinois.
Autonics develops and manufacturers most of their products which means they are high quality, readily available and competitive. Their products range from sensors and controllers to safety and industrial networking devices.
Features Include:
- Display method: 4-digit 7-segment LED
- Control method: ON/OFF control, P, PI, PD, PID control
- Sampling cycle: 50ms
- Control output 1: Relay (250VAC~ 3A)
- Option output: Alarm 1/2, Transmission(DC4-20mA)
- Power supply: 100-240VAC~ 50/60Hz
- Protection structure: IP65(front panel)
Input specification:
- Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II
- RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω
- Analog: 0-100mV, 0-5V, 1-5V, 0-10V
- 0-20mA, 4-20mA
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Autonics
TK4H-14RN
Temperature Controller, DIN 96 x 48mm (HW), 1 Alarm, Relay Contact Output, 100-240VAC
$152.00
$152.00
Autonics
TK4H-B4SN
Temperature Controller, DIN 96 x 48mm (HW), 2 Alarm + RS485, SSRP Voltage Ouput, 100-240VAC
$194.00
Autonics
TK4H-A4RN
Temperature Controller, DIN 96 x 48mm (HW), 2 Alarm + PV Transmission, Relay Contact Output, 100-240VAC
$183.00
Autonics
TK4H-24RN
Temperature Controller, DIN 96 x 48mm (HW), 2 Alarm, Relay Contact Output, 100-240VAC
$167.00
