In 2018 the PXR3 series will switch to Version 2. You will notice a '1' in the part number becoming a '2'.
Example: PXR3-RAY1-4V0A1 will now be PXR3-RAY2-4V0A1
Version 2 has similar form, fit, function and programming
The pricing remains the same
This version change is an upgrade in the microchip components
Our Fuji PXR temperature controllers have auto-tuning and fuzzy controls as well as self-tuning. Self-tuning automatically re-tunes the controller under certain conditions, without the need to revert to auto-tuning.
The screw-terminal on the back eliminates the need for a socket!
Remote monitoring of up to 31 Fuji PXR temperature controllers at a time is possible with the RS485 option that uses the industry-standard Modbus ™ protocol. The communications option comes with our free Windows®-based software, PXR-LITE ™. The software allows you to program the Fuji PXR controller from the PC and view real-time data and trend graph while logging the data on to a text file.
Standard Features Include:
PID with auto-tuning, PID self-tuning and fuzzy control are installed as standard.
Front side waterproof specification in conformity with NEMA4X (standard).
Two alarms are equipped, and 8-step ramp/soak function can be installed as an option.
Features Include:
PID auto-tuning, self-tuning, and fuzzy control
NEMA 4X watertight front panel
Re-transmission output, RS-485 communication (option)
Alarm (2 points), 8-step ramp soak (option)
Heating/cooling control version available
External contact input (2 points), timer function (option)

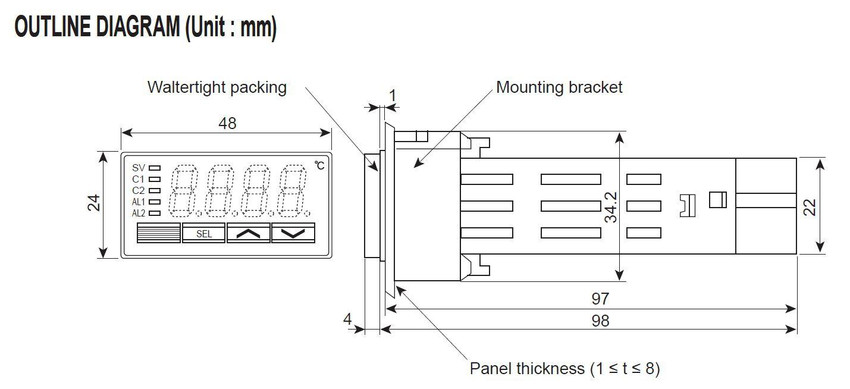

Temperature Controller, Input Signal: 4-20mA DC, 1-5VDC, Control Output 1: 4-20mA DC, Control Output 2: None, Power Supply: Standard (100-240VAC, 50/60Hz), 1/32 DIN (24 x 48mm), PXR3 Series
Temperature Controller: Input Signal: 4-20mA DC, 1-5VDC, Control Output 1: 4-20mA DC Output, Control Output 2: None, Alarm Options: None, Power Supply: Standard (100-240VAC, 50/60Hz), Additional Functions: None , PXR3 Series
Temperature Controller: Input Signal: RTD, Pt100 Ohm, 3-Wire Type (°C), Control Output 1: SSR or SSC Drive Output, Control Output 2: None, Alarm Options: None, Power Supply: 24VAC/DC (50/60Hz), Additional Functions: None , PXR3 Series
Temperature Controller, Input Signal: Thermocouple (°F), Control Output 1: SSR or SSC Drive, Control Output 2: None, Alarm Option: High/Low Alarm 2 Point + 8 Ramp/Soak, Additional Functions: RS485 Communication (Modbus), Power Supply: 100-2
