8103010000
Alt: N1030-RR
$61.00

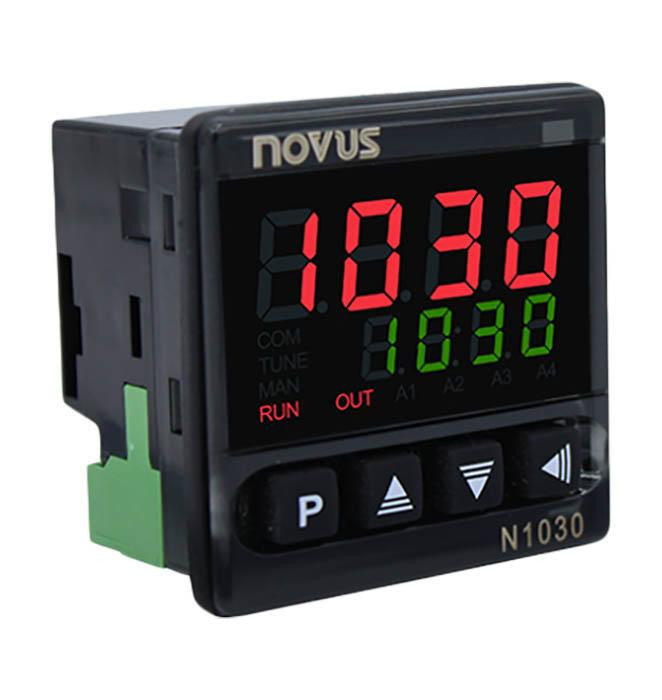

Temperature Controller, 2 Relays Out, 48x48mm, Single Loop PID, 1/16 DIN
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Since 1982, NOVUS Automation has manufactured devices for data acquisition, temperature and process control as well as signal conditioning.
NOVUS is headquartered in southern Brazil with sales offices and warehouses in the US as well.
Features Include:
- Input type: J, K, T and Pt100
- Accuracy: T/C: 0.25%, Pt100: 0.2%
- Detachable terminal block: Yes
- Dimensions: 48 x 48 x 35 mm (1/16 DIN)
- Front panel thickness: 3.3 mm
- PID auto tuning: Yes
- Control mode: PID, On/Off
- Control Action: Heating or cooling
- Output: SSR Pulse, Relay
- Sampling rate: 200 ms
- Available alarm: 1
- Alarm Types: Absolute Minimum, Absolute Maximum, Differential, Minimum Differential, Maximum Differential and Sensor Break
- Timer: Yes, timer model available
- Parameter lock: Password
- Approval: CE and UL (C e US)
- Front panel protection: IP65
- Power supply: 100-240 VAC / 48-240 VCC or 12-24 VCC / 24 VAC
- Maximum consumption: 5 VA
- Panel Format: 48 x 48 DIN 1/16
- Measure displayed: °C and °F
- Anti-flame material: UL94 V2
