8032203024
Alt: N322 NTC
$67.00

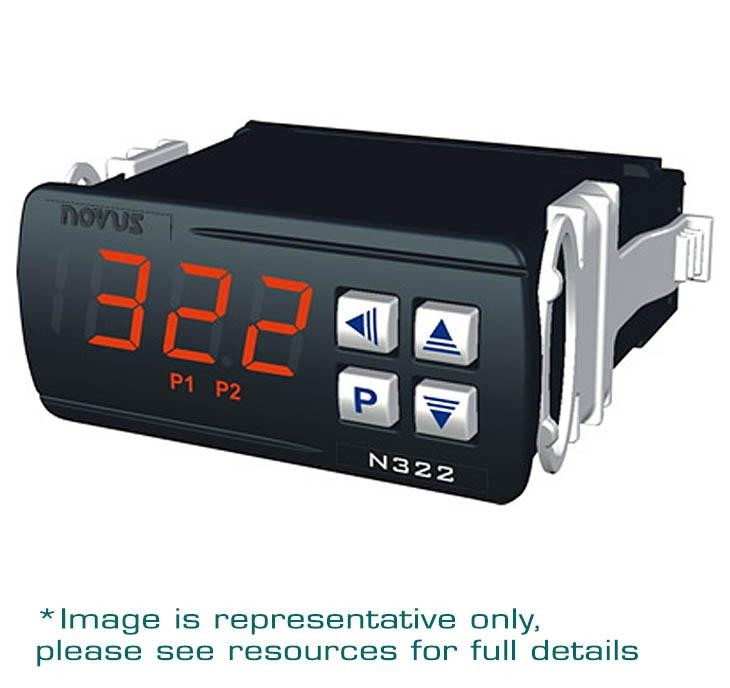

Temperature Controller, 2 Relays, 12~24VDC, NTC, Electronic Indicators and Thermostats
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Temperature Controller, 12~24VDC, 2 Relays Electronic Indicators and Thermostats
Features Include:
- Sensor input: Pt100 (-50 to 300 °C), Pt1000 (-200 to 530 ºC), Thermocouple J (0 to 600 °C) or thermistor (-30 to +105°C )
- IP65 enclosure frontal protection
- Output: Relay SPDT: 1 HP 250 Vac / 1/3 HP 125 Vac (16 A Resistive) and relay SPST-NA: 3 A / 250 Vca
- Resolution: 0,1 °C from -19,9 to 199,9 °C
- Accuracy: ± 0,5 °C / °F ±1 digit (Pt100 / Pt1000 / Thermistor) and ±2 °C for Thermocouple
- Adjustable hysteresis
- Sampling: 1,5 per second
- Working temperature: 0 to 50 °C
- Power supply: 100-240 Vac/dc (internal) or 12-30 Vdc/ac
- Digital communication via RS485 with Modbus RTU protocol(optional)
- Dimensions: 75 x 33 x 75 mm
