Product image is representative only, please verify specifications.
8032103012
Alt: N321 NTC
$58.00

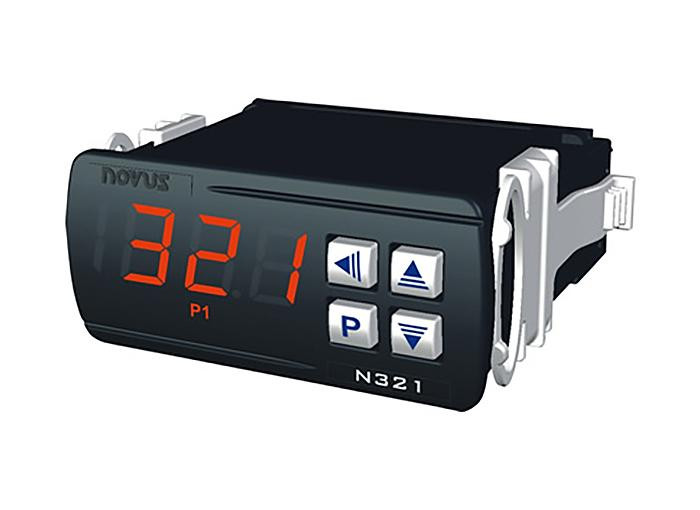

Temperature Controller, NTC, 1 Relay, Electronic Indicators and Thermostats
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Our Novus N321 temperature controllers are available in four different sensor inputs; Pt100, Pt1000, thermocouple J or thermister (please see spec sheet or individual part numbers for sensor input).
These temperature controllers are used to measure, indicator and control temperature in a wide range of applications!
The front is IP65 and the output is relay, SPDT.
Features Include:
- Sensor input: Pt100 (-50 to 300 °C), Thermocouple J (0 to 600 °C) or thermistor (-30 to +105°C)
- IP65 enclosure frontal protection
- Output: Relay SPDT: 1 HP 250 VAC / 1/3 HP 125 VAC (16 A Resistive)
- Resolution: 0,1 °C from -19.9 to 199.9 °C
- Accuracy: ± 0,5 °C / °F ±1 digit (Pt100 / Thermistor) and ±2 °C for Thermocouple
- Adjustable hysteresis
- Sampling: 1.5 per second
- Working temperature: 0 to 50 °C
- Power supply: 100-240 VAC (internal) or 12-24 VAC/DC
- Digital communication via RS485 with Modbus RTU protocol (optional)
- Dimensions: 75 x 33 x 75mm
