Simpson Electric
H340-3-91-1-0-0

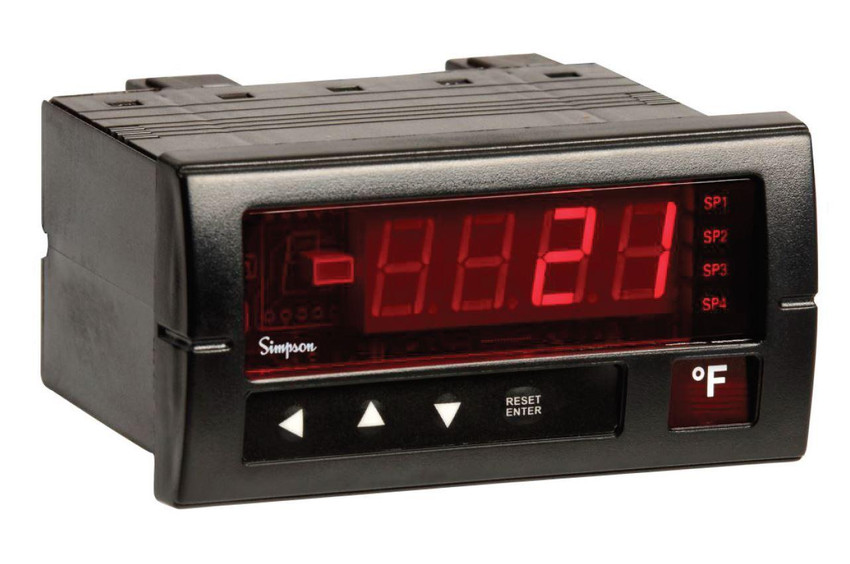

Temp Meter/Controller, Hawk 3, J Thermocouple, 9-36VDC, 4-20DCmA Output
$720.99
H340-1-91-1-0-0
Alt: H340191100
$523.99
Temp Meter/Controller, Hawk 3, J Thermocouple, 120VAC, 4-20DCmA Output
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Temp Meter/Controller, Hawk 3, J Thermocouple, 120ACV, 4-20DCmA Output
Features Include:
- Meter Type: 7-segment, red LED
- Height: 0.56" (14.2 mm)
- Brightness: 5 settings, user programmable
- Excitation: 100mA Max Current
- Operating Temperature: 0 - 50°C

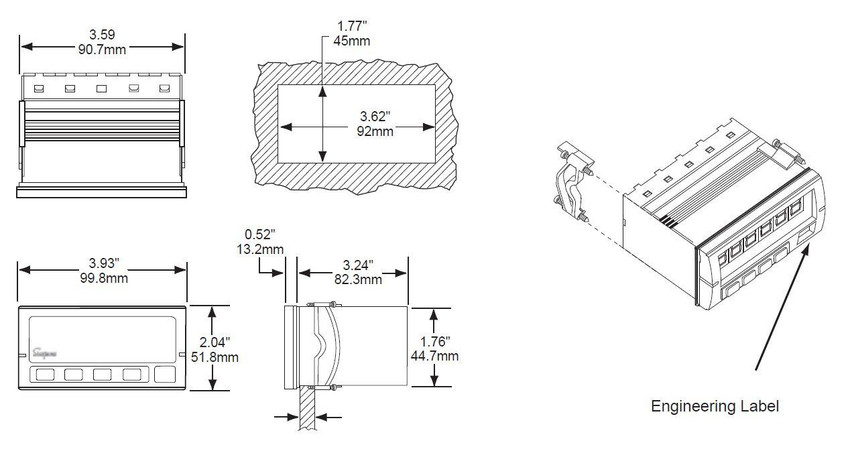

- Panel Cutout: 3.62" x 1.77" (92mm x 45mm) 1/8 DIN
Power Requirements:
- AC: 85 to 250 VAC/120VAC @ 10VA
- DC: 9 to 36 DVC @ 10VA
