Alt: Latest Version of PXR3-RCY1-4VRA1, *Includes 10% Tariff from Manufacturer

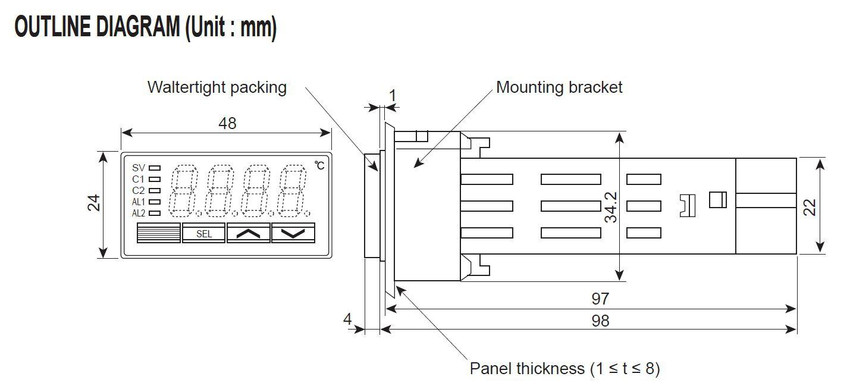

Temp Controller, 1/32 DIN (24x48mm), 100-240VAC, SSR or SSC
In 2018 the PXR3 series will switch to Version 2. You will notice a '1' in the part number becoming a '2'.
Our Fuji PXR temperature controllers have auto-tuning and fuzzy controls as well as self-tuning. Self-tuning automatically re-tunes the controller under certain conditions, without the need to revert to auto-tuning.
The screw-terminal on the back eliminates the need for a socket!
Remote monitoring of up to 31 Fuji PXR temperature controllers at a time is possible with the RS485 option that uses the industry-standard Modbus ™ protocol. The communications option comes with our free Windows®-based software, PXR-LITE ™. The software allows you to program the Fuji PXR controller from the PC and view real-time data and trend graph while logging the data on to a text file.
Standard Features Include:
Fuji Temp Controller
Temperature Controller, Input Signal: Thermocouple (°F), Control Output 1: SSR or SSC Drive, Control Output 2: None, Alarm Option: High/Low Alarm 2 Point + 8 Ramp/Soak, Additional Functions: RS485 Communication (Modbus), Power Supply: 100-2
Fuji Temp Controller
Temperature Controller: Input Signal: RTD, Pt100 Ohm, 3-Wire Type (°C), Control Output 1: SSR or SSC Drive Output, Control Output 2: None, Alarm Options: None, Power Supply: Standard (100-240VAC, 50/60Hz), Additional Functions: Retransmiss
Fuji Temp Controller
Temperature Controller: Input Signal: RTD, Pt100 Ohm, 3-Wire Type (°F), Control Output 1: 4-20mA DC Output, Control Output 2: None, Alarm Options: None, Power Supply: Standard (100-240VAC, 50/60Hz), Additional Functions: Retransmission (4-
Fuji Temp Controller
Temperature Controller: Input Signal: Thermocouple (°C), Control Output 1: SSR or SSC Drive Output, Control Output 2: None, Alarm Options: None, Power Supply: Standard (100-240VAC, 50/60Hz), Additional Functions: Retransmission (4-20mA DC)
