PXR3-RAY2-5V0A1

PXR3-RAY2-5V0A1

Alt: Latest Version of PXR3-RAY1-5V0A1

$257.00

Temp Controller, 1/32 DIN (24x48mm), 100-240VAC, Relay, Version 2

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

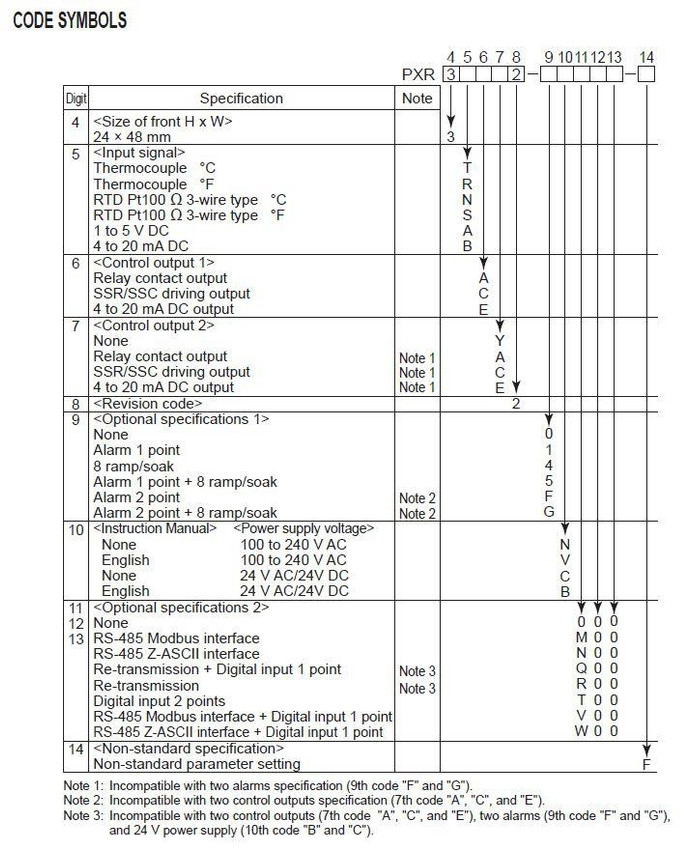

In 2018 the PXR3 series will switch to Version 2. You will notice a '1' in the part number becoming a '2'.

  • Example: PXR3-RAY1-4V0A1 will now be PXR3-RAY2-4V0A1
  • Version 2 has similar form, fit, function and programming
  • The pricing remains the same
  • This version change is an upgrade in the microchip components

Our Fuji PXR temperature controllers have auto-tuning and fuzzy controls as well as self-tuning. Self-tuning automatically re-tunes the controller under certain conditions, without the need to revert to auto-tuning.

The screw-terminal on the back eliminates the need for a socket!

Remote monitoring of up to 31 Fuji PXR temperature controllers at a time is possible with the RS485 option that uses the industry-standard Modbus ™ protocol. The communications option comes with our free Windows®-based software, PXR-LITE ™. The software allows you to program the Fuji PXR controller from the PC and view real-time data and trend graph while logging the data on to a text file.

Standard Features Include:

  • PID with auto-tuning, PID self-tuning and fuzzy control are installed as standard.
  • Front side waterproof specification in conformity with NEMA4X (standard).
  • Two alarms are equipped, and 8-step ramp/soak function can be installed as an option.

Features Include:

  • PID auto-tuning, self-tuning, and fuzzy control
  • NEMA 4X watertight front panel
  • Re-transmission output, RS-485 communication (option)
  • Alarm (2 points), 8-step ramp soak (option)
  • Heating/cooling control version available
  • External contact input (2 points), timer function (option)
