Product image is representative only, please verify specifications.
80480D2030

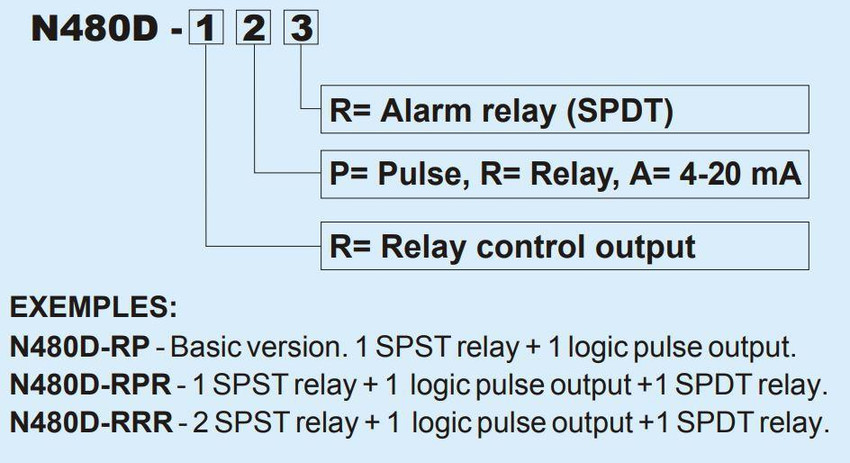

Alt: N480D-RRR USB
$129.00

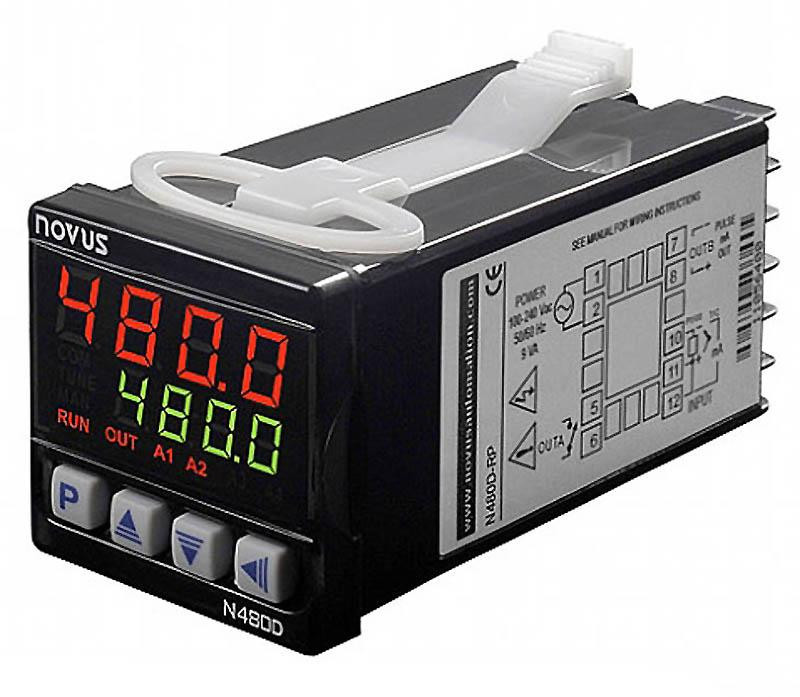

Temperature Controller, 3 Relays Out, 48 x 48mm, Electronic Indicators and Thermostats, N480D Series
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Temp. Controller, 3 Relays Out, 48x48 mm
Features Include:
- Accepts thermocouples type J range -50 ºC to 760 ºC, type K range -90 ºC to 1370 ºC, type T range -100 ºC to 400 ºC, type R range 0 to 1760 ºC, type S from 0 to 1760 ºC, type E range -30 a 720 ºC e type N range -90 a 1300 ºC com with cold junction compensation
- Accepts 2 or 3-wire Pt100 RTD, range -200 ºC to 530 ºC, with cable resistance compensation
- Pt100 excitation current: 0.170 mA
- Internal A/D resolution: 15,000 levels
- Displayed resolution: 7,500 levels
- Four-digit 10 mm red display for measured variable and four-digit 7 mm green display for setpoint
- Sampling rate: 5 measurements per second
- Control output update: 200 ms
- 5 Vdc 20 mA logic control output
- 1 SPDT relay and 2 SPST 3A @ 250 Vac relays
- Power: 100 to 240 Vac/dc, 50/60 Hz; optional 24 Vdc/ac
- Power consumption: less than 9 VA
- Operating environment: 0 to 55 ºC, 20 to 95 % RH
- Front panel: IP65, Polycarbonate UL94 V-2
- Back panel: IP30, ABS+PC UL94 V-0
- Weight: 140 g with 1 relay, 160 g with 3 relays
- Panel cutout: 45.5 mm x 45.5 mm
- Dimensions: 48 x 48 x 110 mm (1.89” x 1.89” x 4.33”)
