Product image is representative only, please verify specifications.
8104211210
Alt: N1040-PRR USB 24V
Temperature Controller, 2 Relays + Pulse Output, 48x48mm, Electronic Indicators and Thermostats
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit

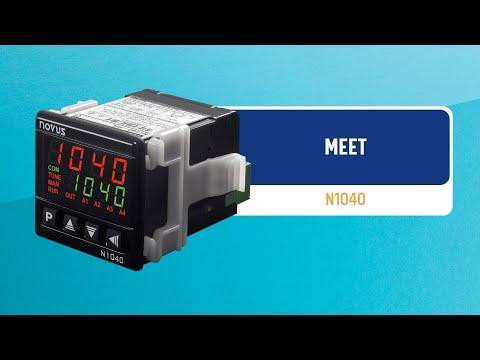

Novus' microprocessor based N1040 was conceived for low cost applications and yet achieving high degree of accuracy. It features a short depth enclosure of only 70 mm thus reducing panel space considerably. Another important innovation is the exclusive removable wiring connection block which translates into ease of use during installation process. It accepts Pt100 RTDs and thermocouples types J, K and T and features two outputs for control and alarm, universal power supply and automatic tuning of the PID parameters. The N1040 is set to be the lowest cost temperature controller in the market while keeping high performance standards.
Features Include:
- Input type: J, K, T and Pt100
- Accuracy: T/C: 0.25%, Pt100: 0.2%
- Detachable terminal block: Yes
- Dimensions: 48 x 48 x 35 mm (1/16 DIN)
- Front panel thickness: 3.3 mm
- PID auto tuning: Yes
- Control mode: PID, On/Off
- Control Action: Heating or cooling
- Output: SSR Pulse, Relay
- Sampling rate: 200 ms
- Available alarm: 1
- Alarm Types: Absolute Minimum, Absolute Maximum, Differential, Minimum Differential, Maximum Differential and Sensor Break
- Timer: Yes, timer model available
- Parameter lock: Password
- Approval: CE and UL (C e US)
- Front panel protection: IP65
- Power supply: 100-240 VAC / 48-240 VCC or 12-24 VCC / 24 VAC
- Maximum consumption: 5 VA
- Panel Format: 48 x 48 DIN 1/16
- Measure displayed: °C and °F
- Anti-flame material: UL94 V2
