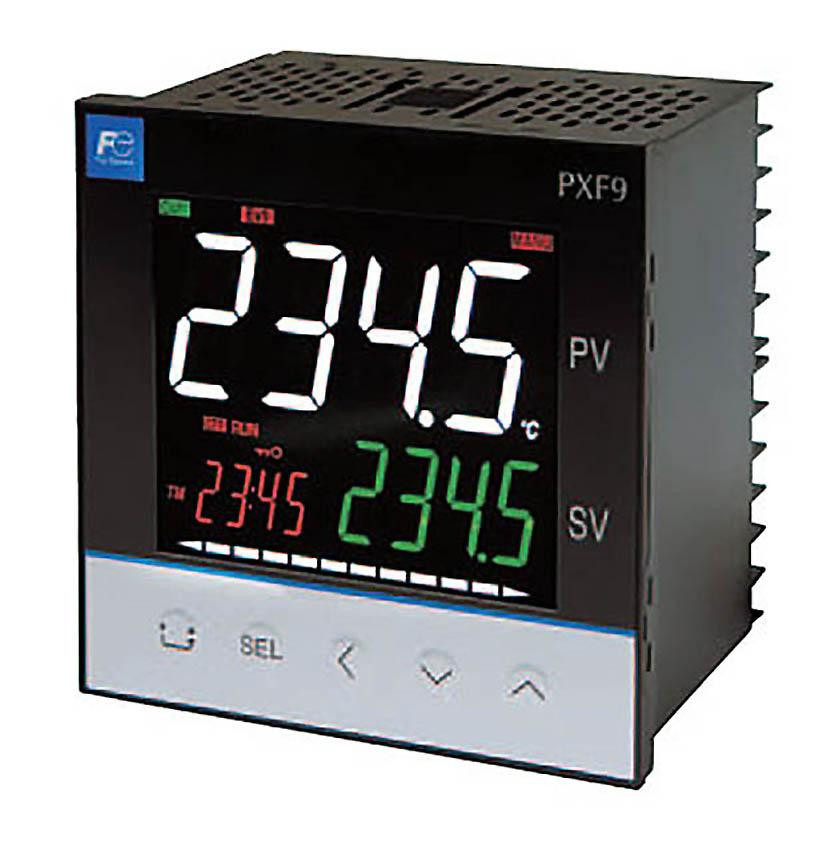

PXF9AEY2-0VTA1

The Fuji PXF Series was developed as the successor of the standard model PXR series of Fuji temperature controllers. Featuring fast sampling speed (50 ms) equal to the PXH, highly accurate input indication, and an universal input, in addition to various functions found in the PXG series while maintaining a competitive price range.

**Please note: The PXF controller requires the power to be cycled to reinitialize universal input terminals, after an input-type programming change (PVt address 530). If power is not cycled -- turned off and then back on -- the displayed process value will not be accurate or reliable. This procedure is described on page 8 of the short form manual included in the box: third bullet point, top left-hand corner of the page.

Controllers pre-programmed by the factory prior to shipment have already been tested and will work as programmed. If the input type is altered in the field, then these units would also require the power to be cycled before the displayed process value is accurate or reliable.

Fuji's PXF compact temperature contoller comes with a 49mm x 49mm front panel with a large, white LCD and 58mm depth behind panel. Equipped with multiple input/output and sophisticated control functions, the PXF serves as a great temperature controller with a wide range of use.

Features Include:

• Precise control: The PXF achieves a processing speed of 50 ms, 10 times faster than conventional models. Reading accuracy has been improved from ±0.5% to ±0.2%*. *Comparison under 0–850°C range, with RTD.
• Easy-to-see display: MVA LCD* which offers high contrast and wide viewing angle. Process value is displayed in white. *Minimal translucent type vertical alignment liquid crystal display.
• Practical options: Simple watt-hour metering function: allows energy consumption monitoring.
• Operating days alarm: Notifies you of the appropriate time for maintenance work.
• Most compact class in industry: 36% smaller (than conventional models) and 58-mm depth shallow body helps downsize your facility.
• Universal input: You can use any input among RTD, thermocouples, voltage, current, and mV. The set-up for input change is very easy, only requires parameter change. This allows reduction of maintenance parts!

Additional information:

• PXF4 is the successor to PXR4 (1/16 DIN/48 x 48mm)
• PXF5 is the successor to PXR5 (1/8 DIN/48 x 96mm)
• PXF9 is the successor to PXR9 (1/4 DIN/96 x 96mm)
