$99.00

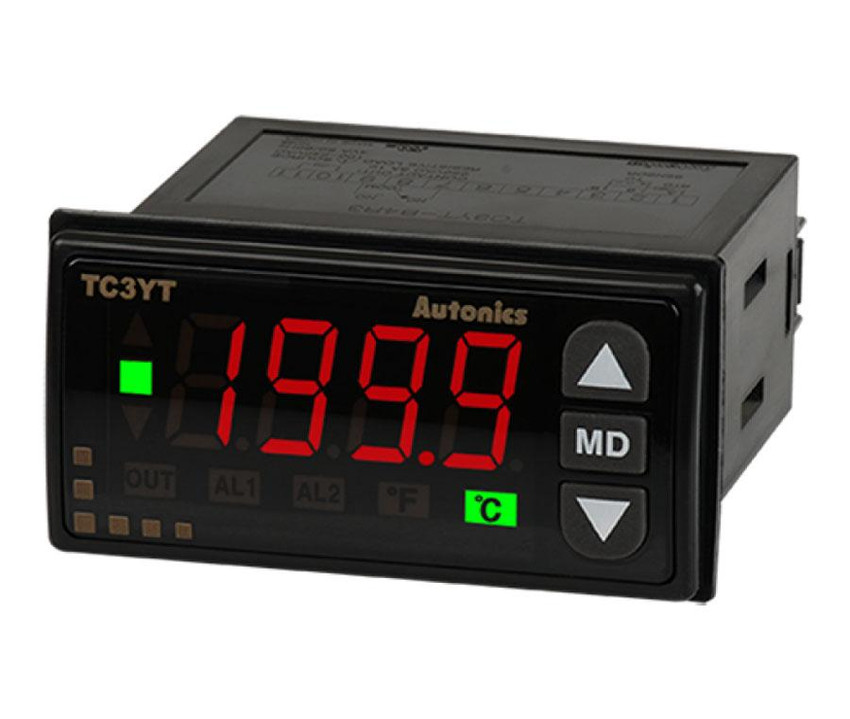

TC3YT-B4R3
Alt: TC3 Series
$93.00
Temp Control, T/C or RTD In, 3A, Relay Output, IP65, 72mmx36mm
- Weight:
- 3.00 LBS
- Minimum Purchase:
- 1 unit
Description
Autonics is a Korean-based company that is a leading provider of automation solutions worldwide. They have had offices in the U.S. since 2001 and have a warehouse and sales office right here in Illinois.
Autonics develops and manufacturers most of their products which means they are high quality, readily available and competitive. Their products range from sensors and controllers to safety and industrial networking devices.
Series Features Include:
- Display method: 3-digit 7-segment LED
- Control method: ON/OFF control, P control
- Input specification: Thermocouple: K(CA), J(IC), RTD: DPt100Ω
- Sampling cycle: 500ms
- Control output: Relay (16A)
- Power supply: 100-240VAC~ 50/60Hz
- Protection structure: IP65(front panel)
- Approval: @(CULUS)
- Display accuracy: ±1-digit with a bigger one of ±0.5% of PV or ±1℃
- Hysteresis(adjustable sensitivity): 1 to 100℃
- Environment Ambient temperature: -10 to 50℃, storage: -20 to 60℃
- Environment Ambient humidity: 35 to 85% RH
- Weight: Approx. 103g
