T3S-B4SK8F-N
Alt: T3S-B4SK8F Is Now T3S-B4SK8F-N
$145.00

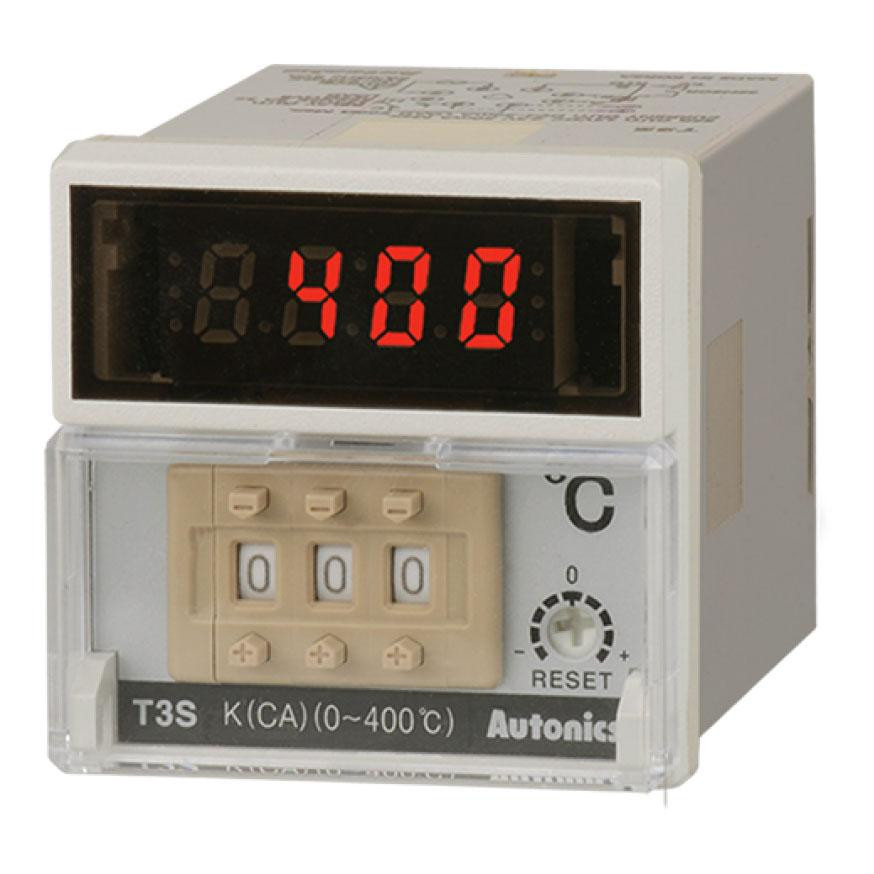

Temp Control, 3 Digit, 48x48mm, DIN, 0-800°C/°F100-240VAC, SSR Drive, CA
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- Display method: 3-digit 7-segment LED
- Control method: ON/OFF control, P control
- Input specification: Thermocouple: J(IC)
- Sampling cycle: 100ms
- Setting range: 0 to 800°C/°F
- Control output: Relay(250VAC~ 5A)
- Power supply: 100-240VAC~ 50/60Hz
- Display accuracy Thermocouple: At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit, Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
- Environment Ambient temperature: -10 to 50°C, storage: -20 to 60°C
- Weight: Approx. 135g(approx. 95g)
