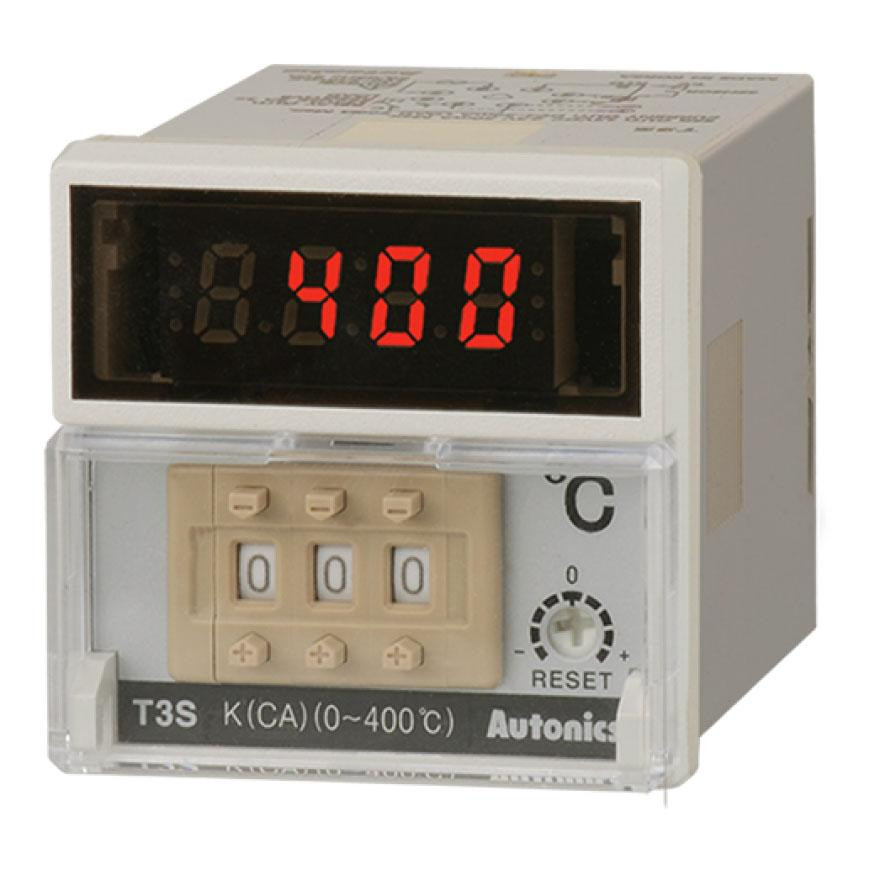

T3S-B4RJ8F-N

Autonics is a Korean-based company that is a leading provider of automation solutions worldwide. They have had offices in the U.S. since 2001 and have a warehouse and sales office right here in Illinois.



Autonics develops and manufacturers most of their products which means they are high quality, readily available and competitive. Their products range from sensors and controllers to safety and industrial networking devices.

Series Features Include:

• Display method: 3-digit 7-segment LED
• Control method: ON/OFF control, P control
• Input specification: Thermocouple: J(IC)
• Sampling cycle: 100ms
• Setting range: 0 to 800°C/°F
• Control output: Relay(250VAC~ 5A)
• Power supply: 100-240VAC~ 50/60Hz
• Display accuracy Thermocouple: At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit, Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
• Environment Ambient temperature: -10 to 50°C, storage: -20 to 60°C
• Weight: Approx. 135g(approx. 95g)

• Autonics T3S/T3H/T4M/T4L Series Digital Switch Catalog
