Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Features Include:
Rated Input Voltage: 100VAC to 240VAC
Input Voltage Range: 85VAC to 264VAC / 120VDC to 375VDC
AC Current (max): 115VAC (1000mA) / 230VAC (500mA)
Frequency Range: 47Hz to 63Hz
Inrush Current: 115VAC (<30A) / 230VAC (<60A)
Inrush Current (DC): 70A @ 375Vdc
Output Power: 50W
Rated Output Current: 4A (12VDC) / 2.1A (24VDC)

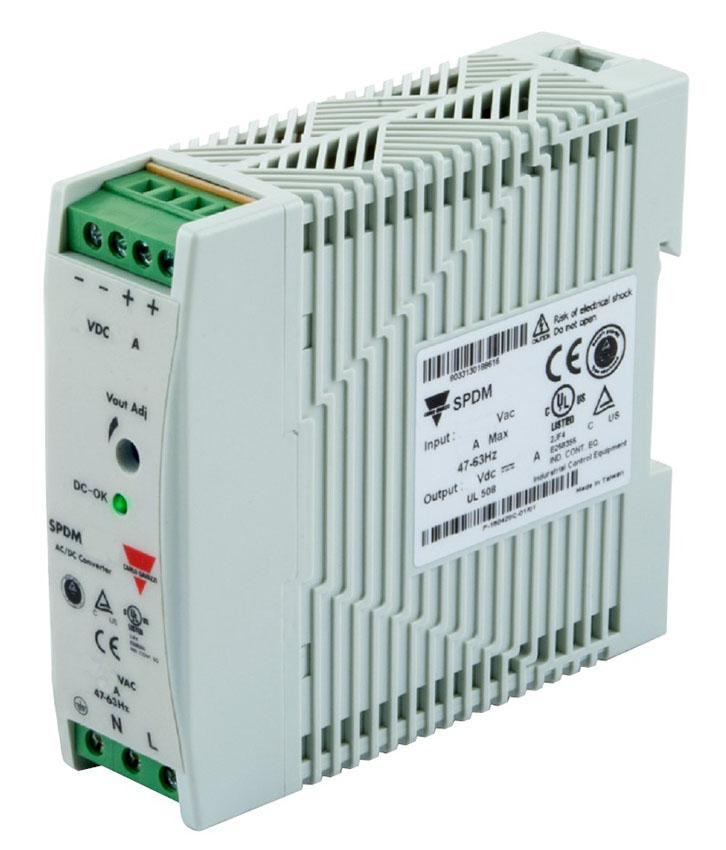

Power in compact dimensions. The SPDM provide up to +30% space saving when compared to SPD
Intuitive indication. A clear LED indicate the status of the power supply
Reliable critical protection. The operation safety is guaranteed by the various output protections: Over Voltage (OVP), Over Load (OLP), Short Circuit (SCP) and Over Temperature (OTP).
High efficiency and wide operating ambient temperature. These power supplies have an efficiency up to 88%.
Ease of installation. The SPDM can be installed in 5 different orientations, enabling the unit to fit easily into installations with limited space.
