83611611002
Alt: Metasol, Non-Cancellable / No Returns
$14.10
Surge Unit, US, for 4P MC, 24-48VAC for MC-22a/4-85a/4, NCNR
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Surge Unit, US, for 4P MC, 24~48VAC for MC-22a/4~85a/4
Features Include:
- It absorbs the surge arisen out of the coil of the contactor.

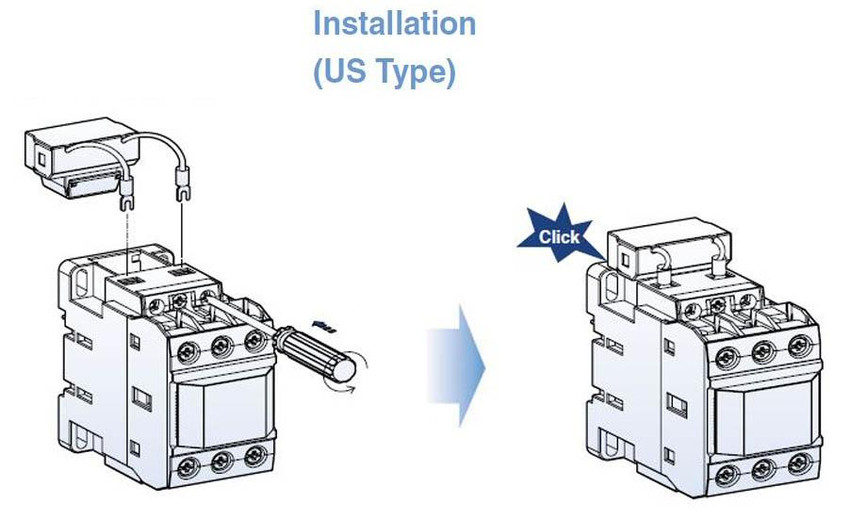

- It can be installed simply to the contactor.
- Rated operation voltage (Ue): AC 24 ~ 440V / DC 24 ~ 125V
- Rated insulation voltage (Ui): 1000V
- Rated impulse withstand voltage (Uimp): 8kV
- Degree of protection: IP20
- Combination with 3Pole 6a/3~150a/3, 4Pole 32a/4~85a/4
