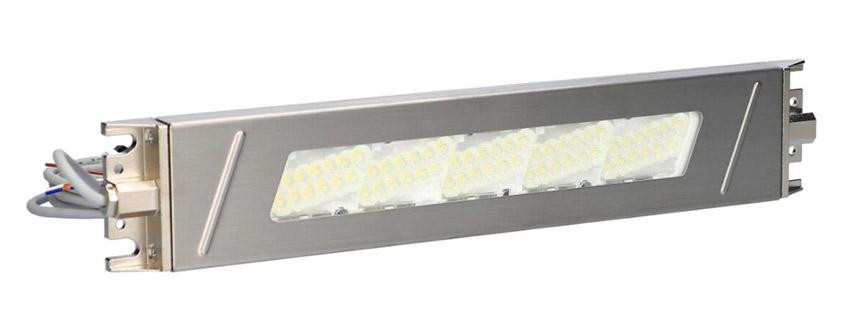

LED Light Strip, Standard Light Distribution, Surface Mount, Side Connection, 5m Cable, 55.8 × 17.5 × 310mm (WHD), LUMIFA LED Lighting, LF3D Rugged Series
IDEC has a full line of automation products, safety components, switches and much more. They are well known for their HMI, relays, e-stops and safety products.
Founded in 1945 as Izumi Shokai, their US office, IDEC Corporation, was opened in 1975. Marshall Wolf Automation has been a long-time authorized, stocking distributor for IDEC.
Features Include:
Style: Uniform light source / slim type
Light distribution: Standard, Diffused
Rated voltage: 24V DC
Operating voltage range: 21.6 to 26.4V DC
Rated Power (typ.) (at rated voltage): 9.2W
Illumination color: Cool white
Color temp. (typ.): 5700K
Luminous Flux (typ.): 1700 lm
Shock resistance (damage limits): 1000m/s2
Operating temperature –30 to +55°C (no freezing)
Operating relative humidity 45 to 85%RH (no condensation)
Operating atmosphere No corrosive gas
Light source life (*1): 50,000 hours (The illumination duration in which the brightness maintains a minimum of 70%) (Ta = 25ºC, 45%RH max.)
Degree of protection Surface mount: IP65, IP67, IP67G, IP69K
