50116192
Alt: BCL 300i R1 F 100, Non-Cancellable / No Returns
$2,778.00
Stationary Barcode Reader, 1,000 Scans/Sec, 70-440mm, Raster Scanner with Deflecting Mirror, NCNR
- Weight:
- 1.07 LBS
- Minimum Purchase:
- 1 unit
Description

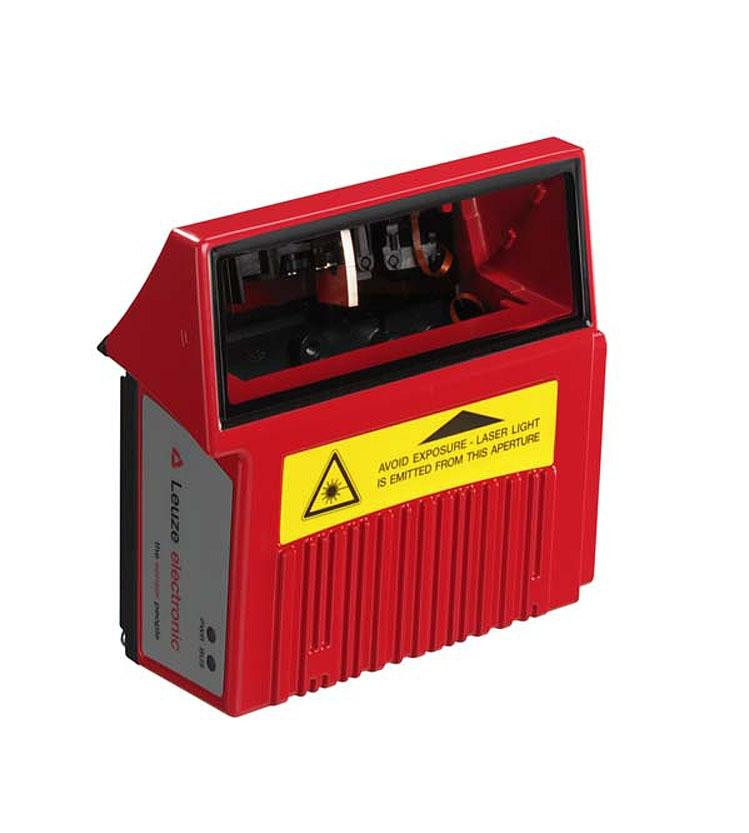

The Leuze BCL 300i series is a modular, stationary barcode reader that features code fragment and modular connection technology as well as a number of equipment features.
Additonal features of these bar code readers:
- Integrated fieldbus connectivity (PROFIBUS, PROFINET, EtherNet, EtherNet/IP, EtherCAT, TCP/IP, multiNet, RS 232/422/485) with Ethernet switch function (for linear topology)
- Full CRT (code reconstruction technology) also detects heavily damaged or soiled codes
- webConfig - an operating-system independent, browser-based configuration tool
- High-quality optics with great depth of field and large opening angle
- Compact housing design for problem-free placement directly at the conveyor line

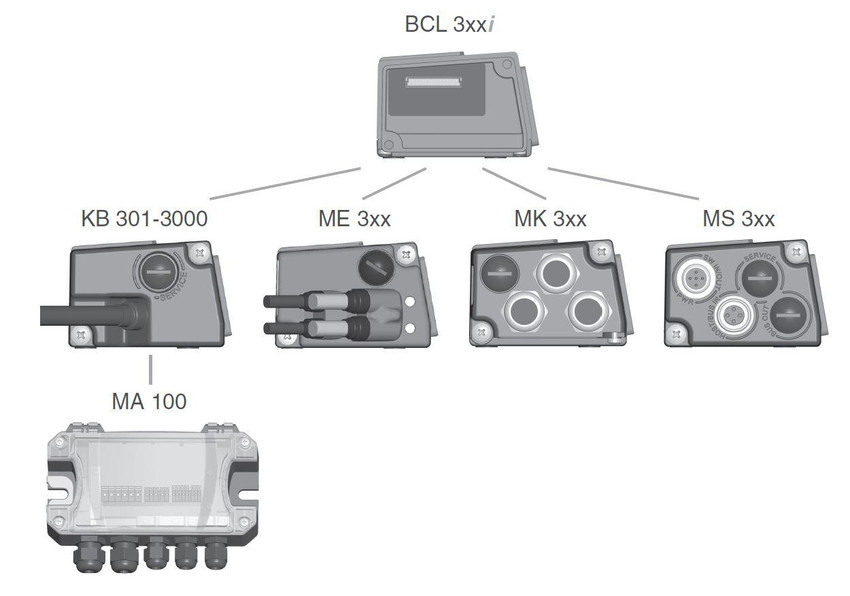

- Modular connector hood, terminal hood and terminal box and graphical display
- All optics models are also available with optional heating
Marshall Wolf Automation is your authorized Leuze distributor!
Features Include:
- Supply Voltage: 18 - 30 VDC
- Power Consumption, Max.: 4.5 W
- Dimensions (W x H x L): 103 mm x 44 mm x 96 mm
- Housing Material: Metal, Diecast aluminum
- Lens Cover Material: Glass
- Type of Fastening: Dovetail grooves, Fastening on back, Via optional mounting device
- Scanning Rate, Typical: 1,000 scan/s
- Bar Codes per Reading Gate, Max. Number: 64 Piece(s)
- Reading Distance: 70 - 440 mm
- Light Source: Laser, Red
- Laser Light Wavelength: 655 nm
- Laser Class: 2, IEC/EN 60825-1:2007
- Module Size: 0.3 - 0.5 mm
- Reading Method: Raster scanner with deflecting mirror
- Beam Deflection: By means of rotating polygon mirror wheel + deflecting mirror
- Light Beam Exit: Lateral with deflecting mirror
Functions:
- AutoConfig, AutoControl, AutoReflAct, Code fragment technology, Alignment mode, LED indicator, Reference code comparison
Cody Types, Readable:
- 2/5 Interleaved, Code 128, Code 39, EAN 8/13, UPC, Codabar, Code 93, GS1 Databar Omnidirectional, GS1 Databar Limited, GS1 Databar Expanded
Connection:
- Type of Connection: Plug Connector
- Function: Data interface, PWR / SW IN/OUT, Service interface, Connection to device, BUS OUT
- Number of Pins: 32-pin
- Type: Male
