ST DL420N5-E0T

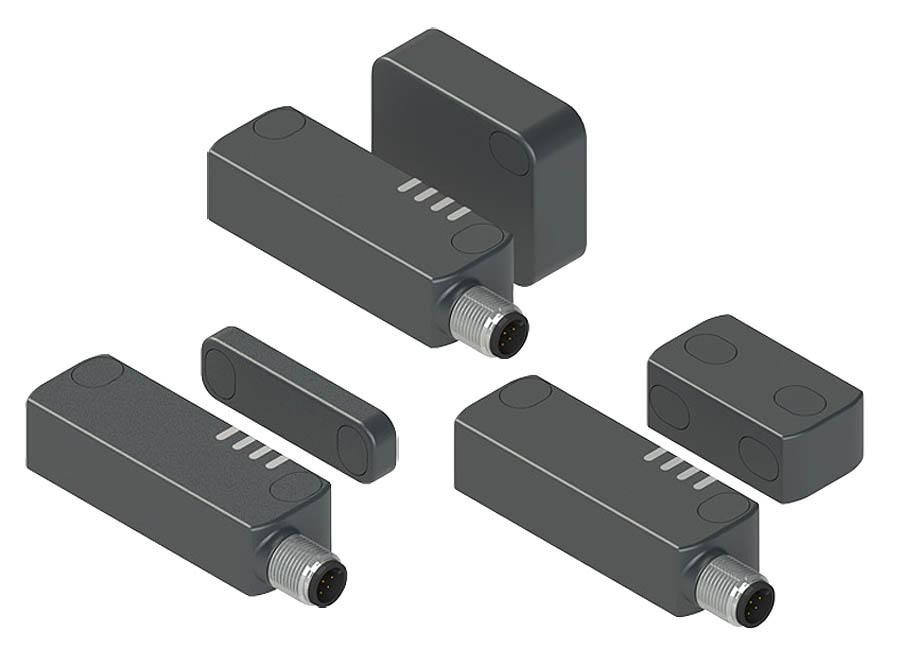

Pizzato's ST D series are RFID safety sensors that can be used for monitoring protective devices on machines without inertia and allow the system to reach a safety category up to SIL 3 according to EN 62061 as well as up to a PL e and Category 4 according to EN ISO 13849-1.

The ST D series uses RFID technology to provide high protection against possible manipulation. There are no mechanical elements so you will receive long life even in applications with frequent operating cycles or harsh conditions.

• Can connect up to 32 sensors in series while maintaing the maximum safety level (PL e)
• Constructed with redundanct electronics; maximum PL e and SIL 3 can be achieved through the use of a single device on a guard
• Features two safety inputs and two safety outputs which can be connected in series with other Pizzato safety devices
• IP67 and IP69K

Series Features Include:

• Actuation without contact, using RFID technology
• Digitally coded actuator
• Protection degrees IP67 and IP69K
• 4 LEDs for status display of the sensor
• Actuators with various actuation distances

Need More Information?

• Pizzato ST Series Safety Sensors with RFID Technology Brochure
• Pizzato ST Series Safety Sensors with RFID Technology Operating Instructions
