Pizzato's ST D series are RFID safety sensors that can be used for monitoring protective devices on machines without inertia and allow the system to reach a safety category up to SIL 3 according to EN 62061 as well as up to a PL e and Category 4 according to EN ISO 13849-1.
The ST D series uses RFID technology to provide high protection against possible manipulation. There are no mechanical elements so you will receive long life even in applications with frequent operating cycles or harsh conditions.
Can connect up to 32 sensors in series while maintaing the maximum safety level (PL e)
Constructed with redundanct electronics; maximum PL e and SIL 3 can be achieved through the use of a single device on a guard
Features two safety inputs and two safety outputs which can be connected in series with other Pizzato safety devices
IP67 and IP69K
Features Include:

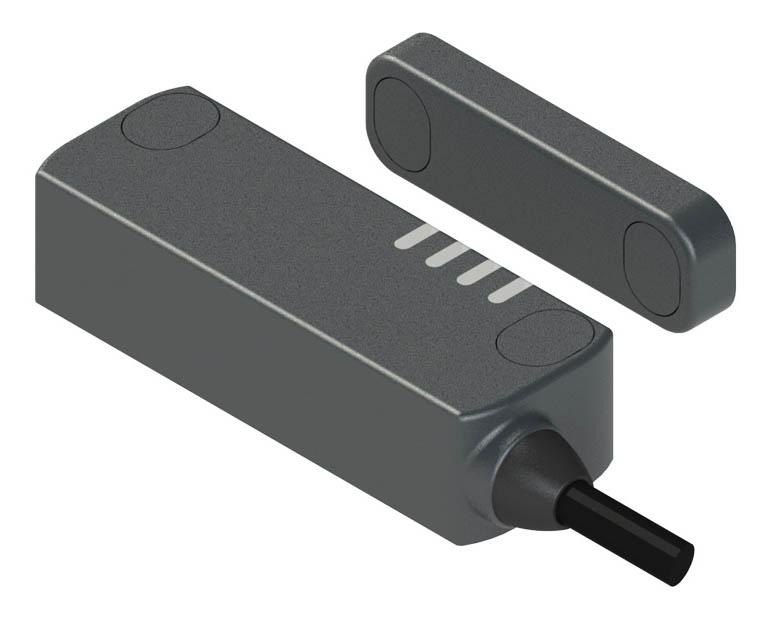

Housing: Polymer housing with output connection from right, ST D series
